HC-JOY-G4
Tech Specs
Documentation
Your Serial Production Workflow Deserves an Upgrade

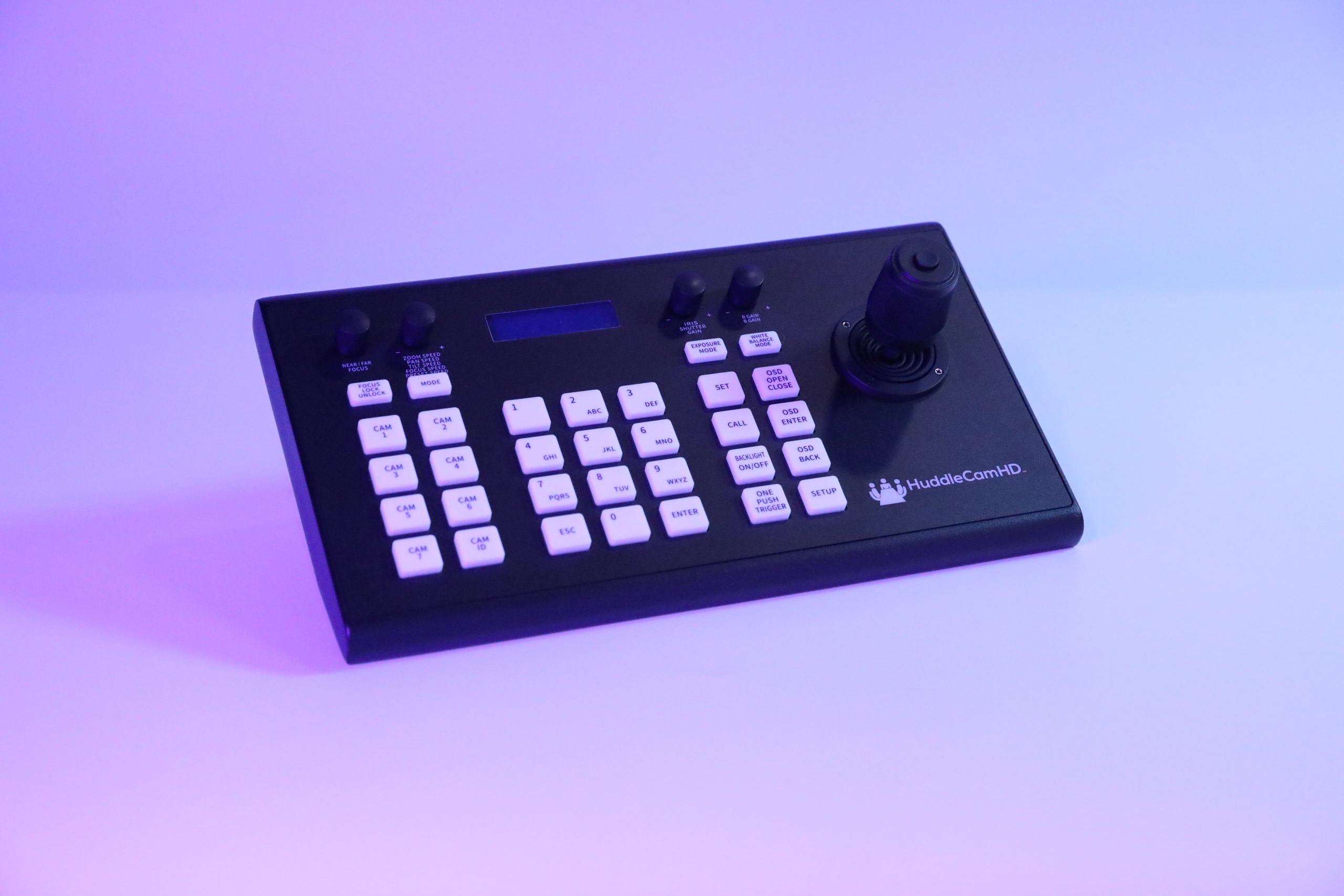

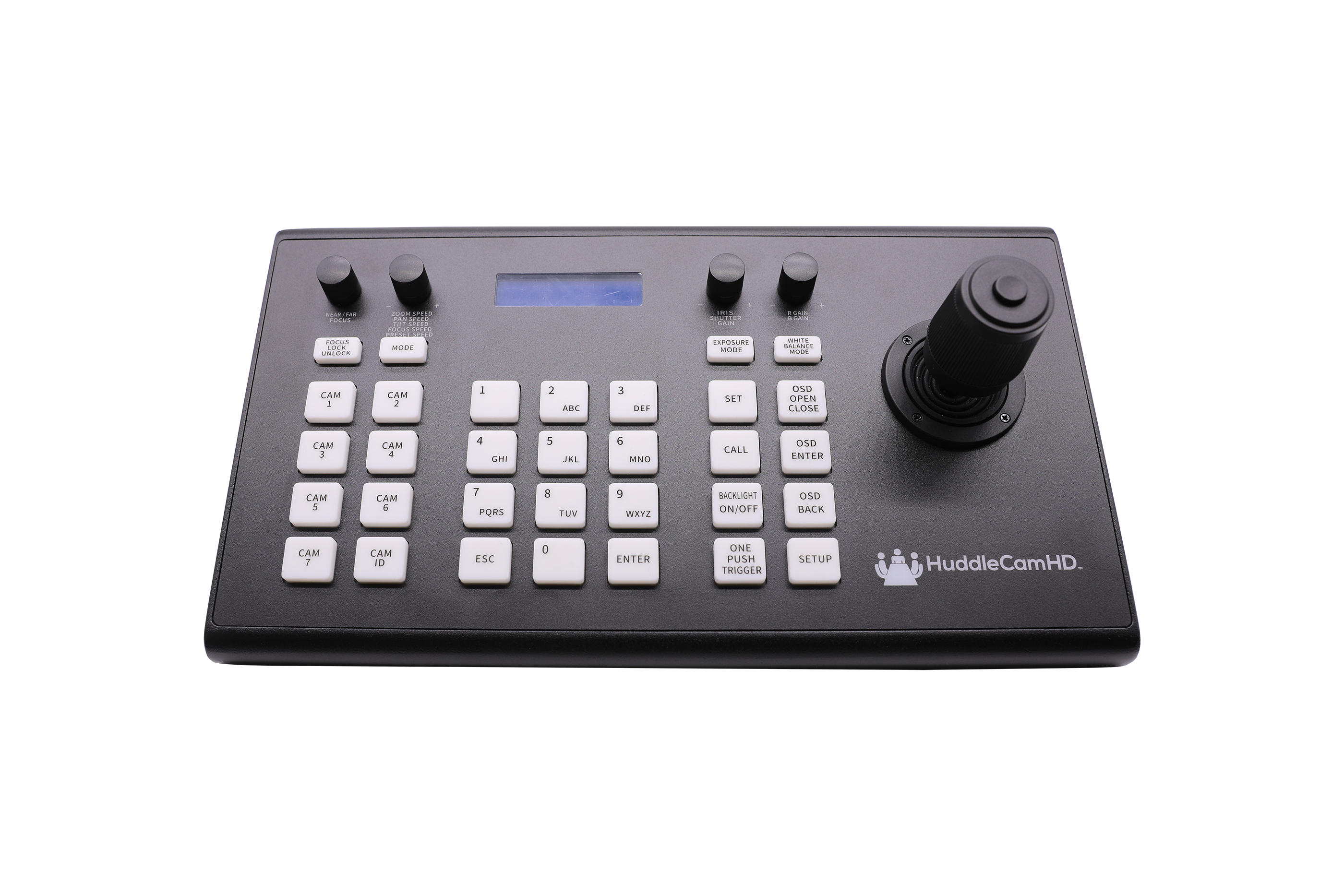

Built on the same platform as the award-winning PTZOptics SuperJoy, the HuddleCamHD HC-JOY-G4 offers everything you love about serial control in one simple, reliable, super-sleek package, including:
- 7 Camera Quick-Select Buttons
- Iris, Shutter, & Gain Knobs
- Focus & PTZ Speed Knobs, Plus Focus Lock
- OSD Menu Control
- 10 Quick-Call Presets via Alphanumeric Buttons
- Modes for all users, including Basic, Basic PTZ, and Matrix mode
Enhanced User Experience & Control

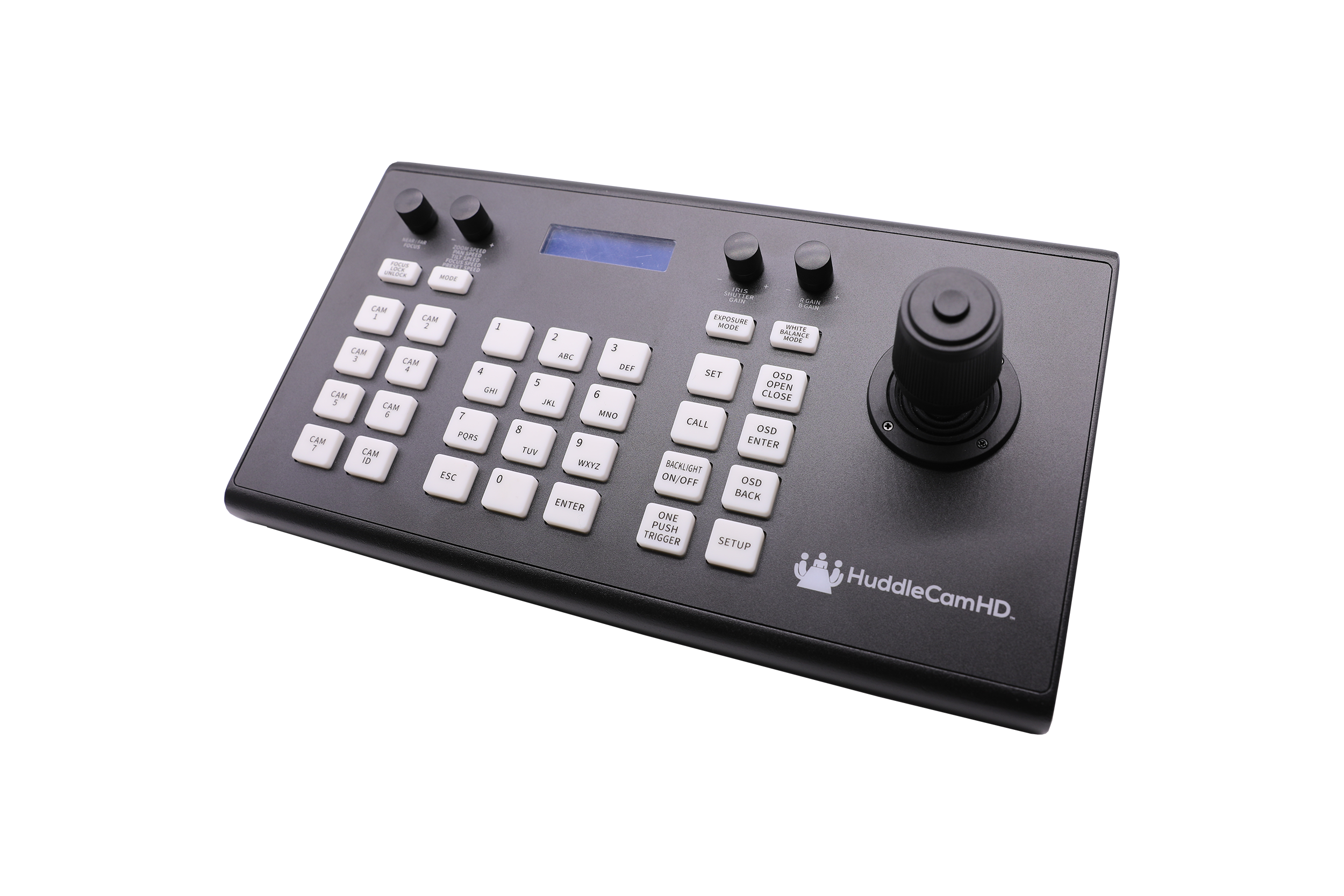

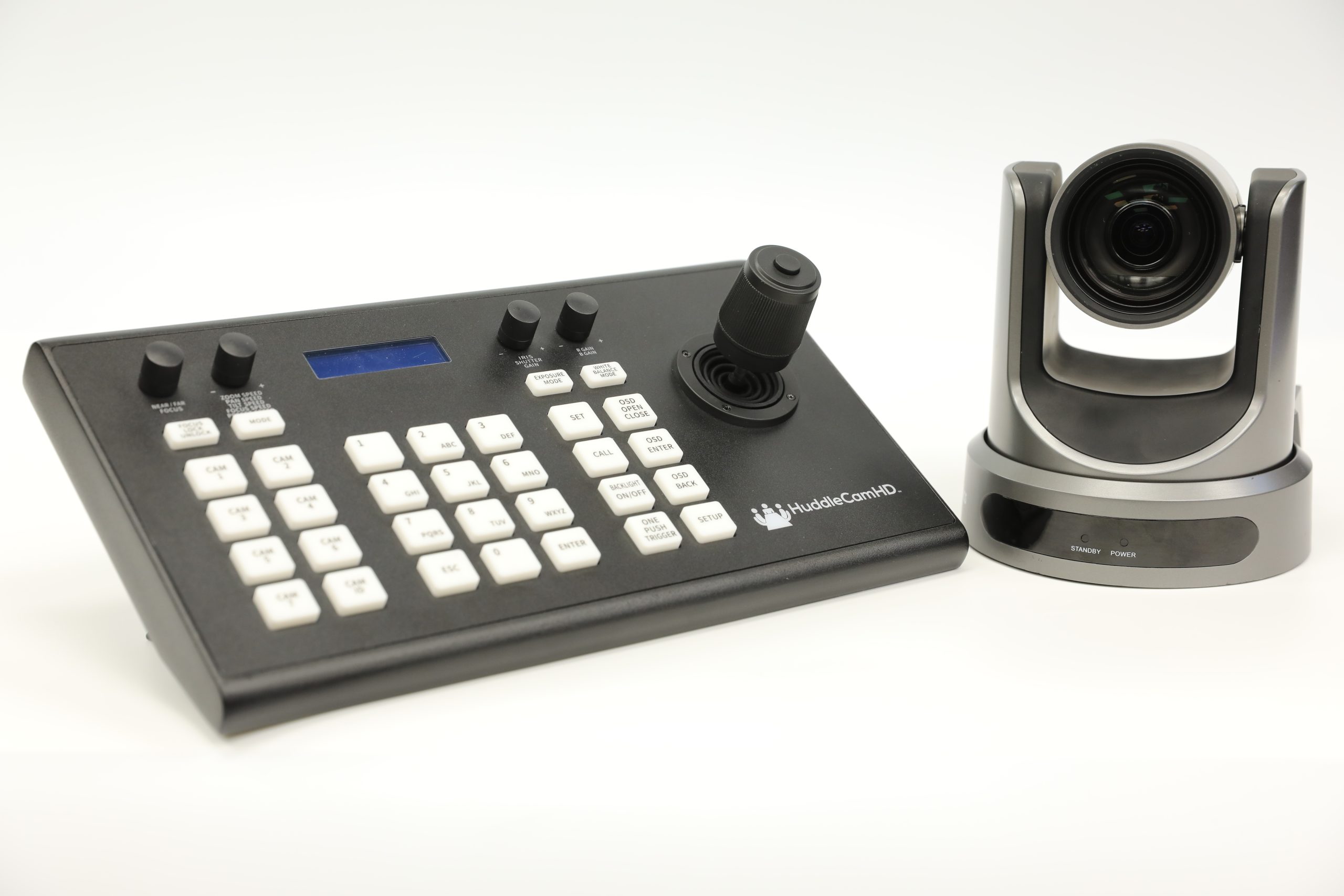

The HC-JOY-G4 Serial PTZ joystick controller delivers a seamless user experience and is designed to adapt to a wide range of PTZ camera operation environments. With its intuitive layout, featuring seven camera quick-select buttons on the left side of the controller, users of all skill levels can easily switch between cameras. Plus, the controller’s three-axis joystick offers precise control over pan, tilt and zoom functions, while the on-screen display allows users a simplified view of settings and functions. And with user modes including Basic, Basic PTZ, and Matrix, beginners and experts alike can use the HC-JOY-G4 to easily produce professional-quality video – regardless of their experience level.
Built for Versatility, Compatibility & Durability

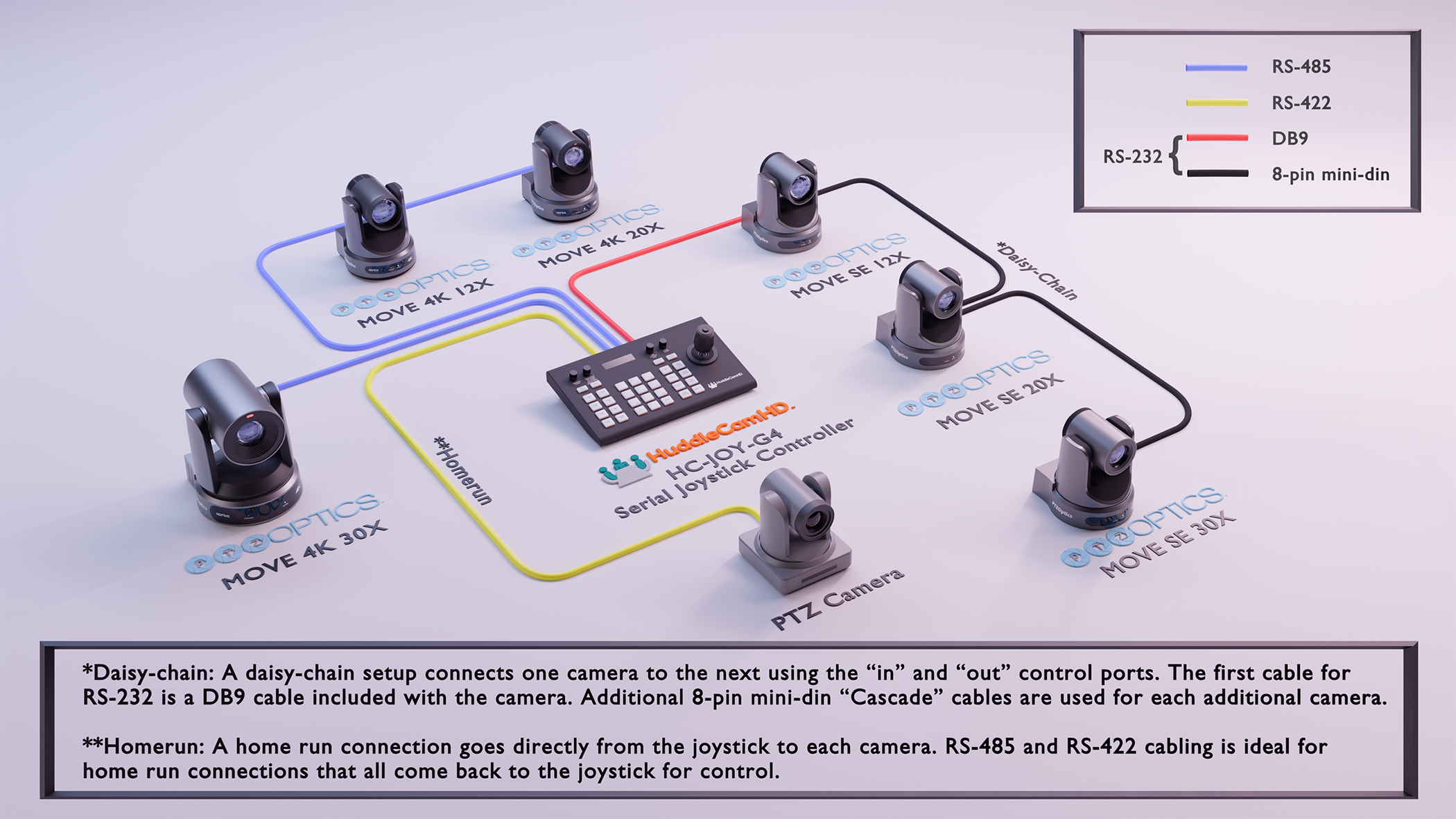

With support for VISCA, PELCO-P, and PELCO-D protocols, and RS-232, RS-422, & RS-485 wiring methods, the HuddleCamHD HC-JOY-G4 is designed to perform with a broad range of serial production environments. It can integrate seamlessly into your existing workflow, or serve as the control center for your latest setup. Plus, redesigned with all-new premium metal housing, the HC-JOY-G4 is built to stand up to the wear and tear of even the most intense production schedules, making it perfect for long-term use in professional environments.
Advanced Tactile Interface for On-the-Fly Tuning
Get ready to take your production’s precision to the next level. The HuddleCamHD HC-JOY-G4 features ergonomic, rubberized controls and pressure-sensitive, multifunctional knobs for precise, real-time fine-tuning. Intuitively adjust parameters like far and near focus, ensuring optimal image clarity. Control pan, tilt and zoom speeds, as well as the speed with which cameras travel between presets, for smooth and seamless camera movements. Perfect your lighting and exposure on the fly with iris, shutter-speed and gain settings, and use red and blue gain settings to refine your color balance – all with just a turn of your fingers. Plus, with a simple click on each knob, operators can effortlessly switch between parameters, making the HC-JOY-G4 an ideal tool for achieving professional-grade results with any serial PTZ camera setup.

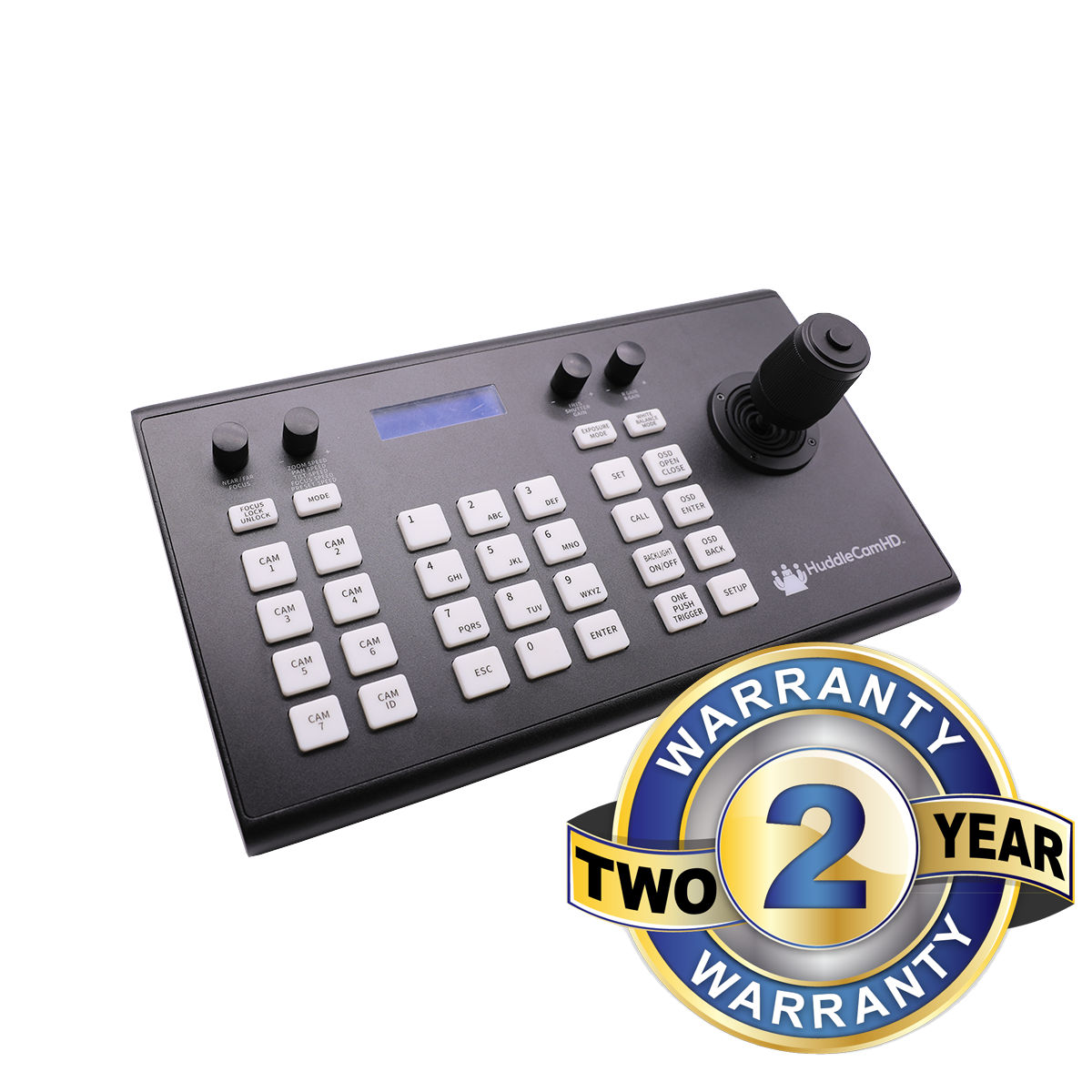

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our Serial Joysticks come with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features and
benefits
- Compatible with RS-232, RS-485, RS-422, VISCA, Pelco-D, Pelco-P
- 7 Quick Camera Select buttons
- 3-Axis Joystick Control
- Camera OSD Menu control
- Exposure and White Balance Mode Cycle buttons
- Focus Lock Toggle
- Iris, Shutter, Gain, Red Gain, & Blue Gain knobs
- Basic, Basic PTZ, and Matrix Modes for users of all skill levels
- Durable metal housing and rubberized precision controls
Joystick Comparison
HC-JOY-G4
329
- Cabling: RS-232, RS-485, RS-422
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: DC12V
- Control Protocol: VISCA, PELCO-D, PELCO-P
- Maximum Cameras: 255 cameras
- Design Notes: Works with any PELCO camera
- USB
PT Joystick G4
714
- Cabling: RS-232, RS-485, RS-422, RJ-45
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: 6W|12VDC/PoE (802.3af) (Only use one power source at a time)
- Control Protocols: VISCA over IP (PTZOptics & Sony) or Serial Control (RS232, RS485, Pelco-D, & Pelco-P)
- Multiple Control Types: IP OR Serial (must manually toggle between the two)
- Maximum Cameras: 255 cameras via network, 7 cameras via serial VISCA
- Design Notes: Compatible with most PTZ cameras
- USB (only for firmware upgrades)
- HDMI Output
SuperJoy
989
- Cabling: RS-232, RS-485, RS-422, RJ-45
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: 6W|12VDC/PoE (802.3af) (Only use one power source at a time)
- Control Protocols: VISCA over IP (PTZOptics & Sony), Serial Control (RS-232, RS-485, Pelco-D, & Pelco-P), & NDI®
- Multiple Control Types: IP AND Serial
- Maximum Cameras: 255 total cameras (28 cameras (4 groups of 7 channels) plus a group with up to 227 cameras)
- Design Notes: Compatible with most PTZ cameras
- USB (only for firmware upgrades)
- HDMI Output
