Create a Powerful, Precise and Versatile Production Experience

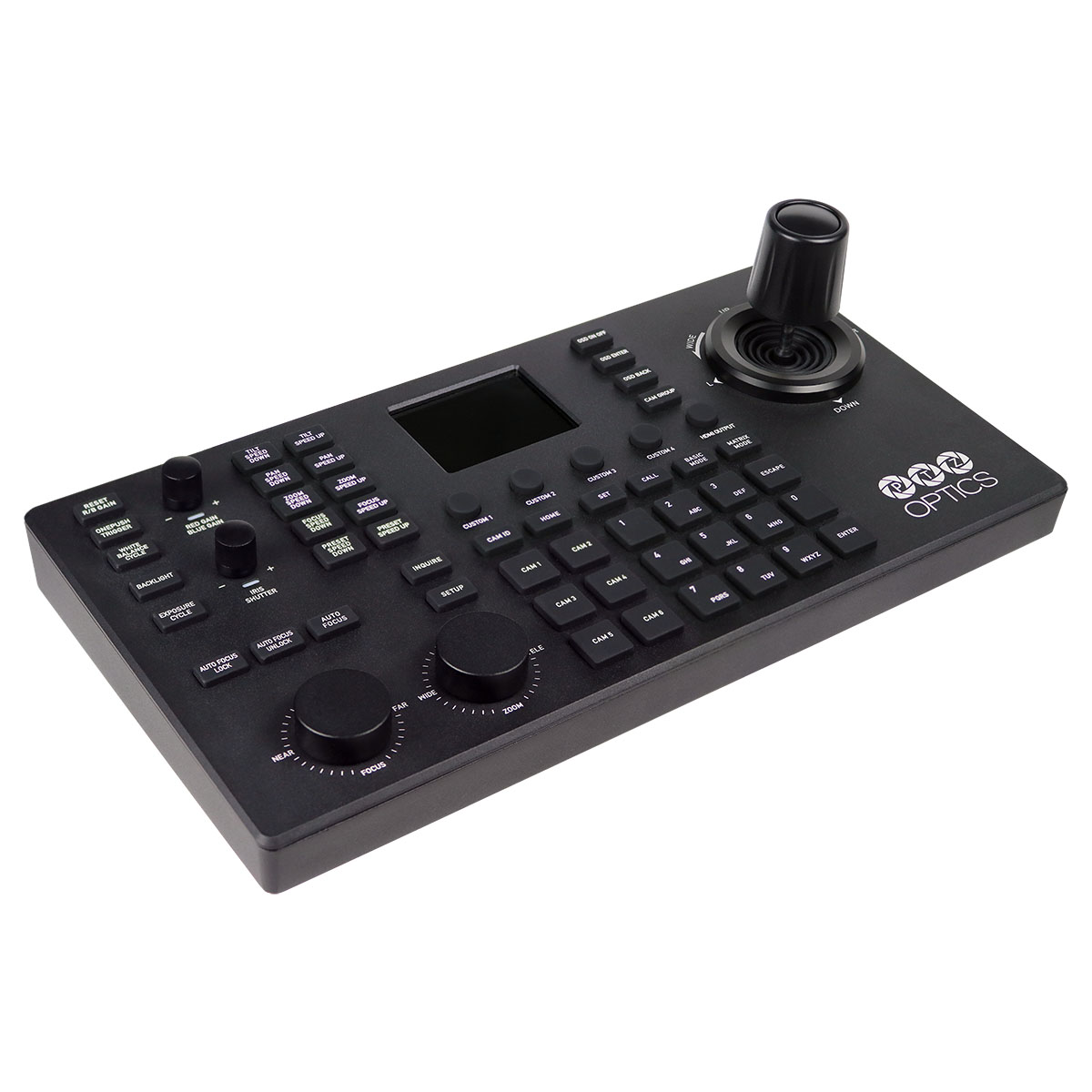

Introducing the PTZOptics SuperJoy, a PTZ camera joystick controller designed for smooth, efficient production workflows. The SuperJoy takes remote pan, tilt, and zoom camera operations to the next level in a simplified user interface with advanced controls for power users.
Streamlined, Real-Time Production
The SuperJoy offers an intuitive, tactile interface, simplifying and streamlining even the most complex production setups.

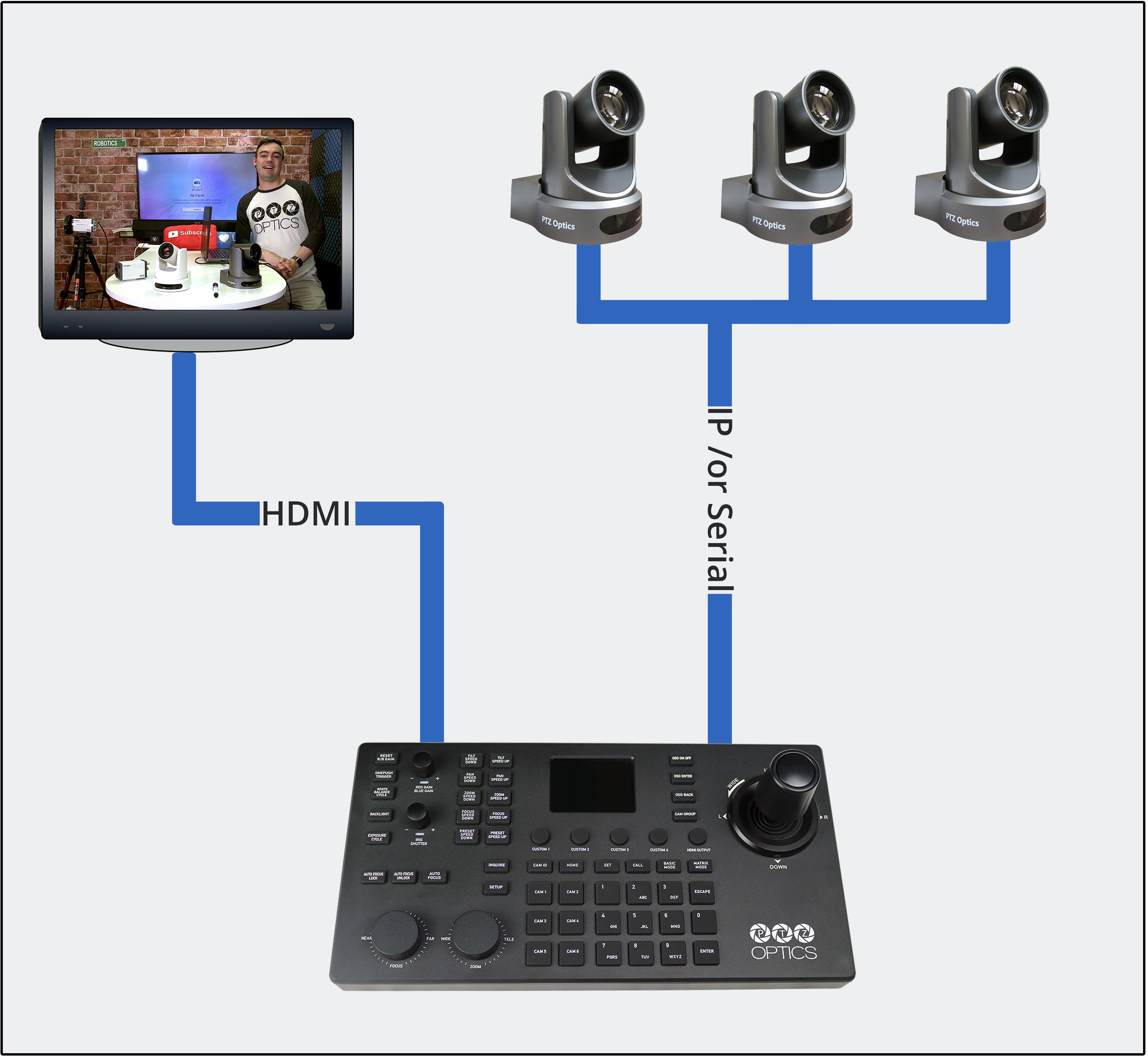

- SuperJoy’s HDMI video output provides a 1080p video preview for any camera connected to the SuperJoy that has an RTSP video feed available for use. This HDMI video output is ideal for viewing cameras over a local area network. In this way, a SuperJoy controller can be set up anywhere on a network to gain PTZ camera controls with a low-latency, live video preview.

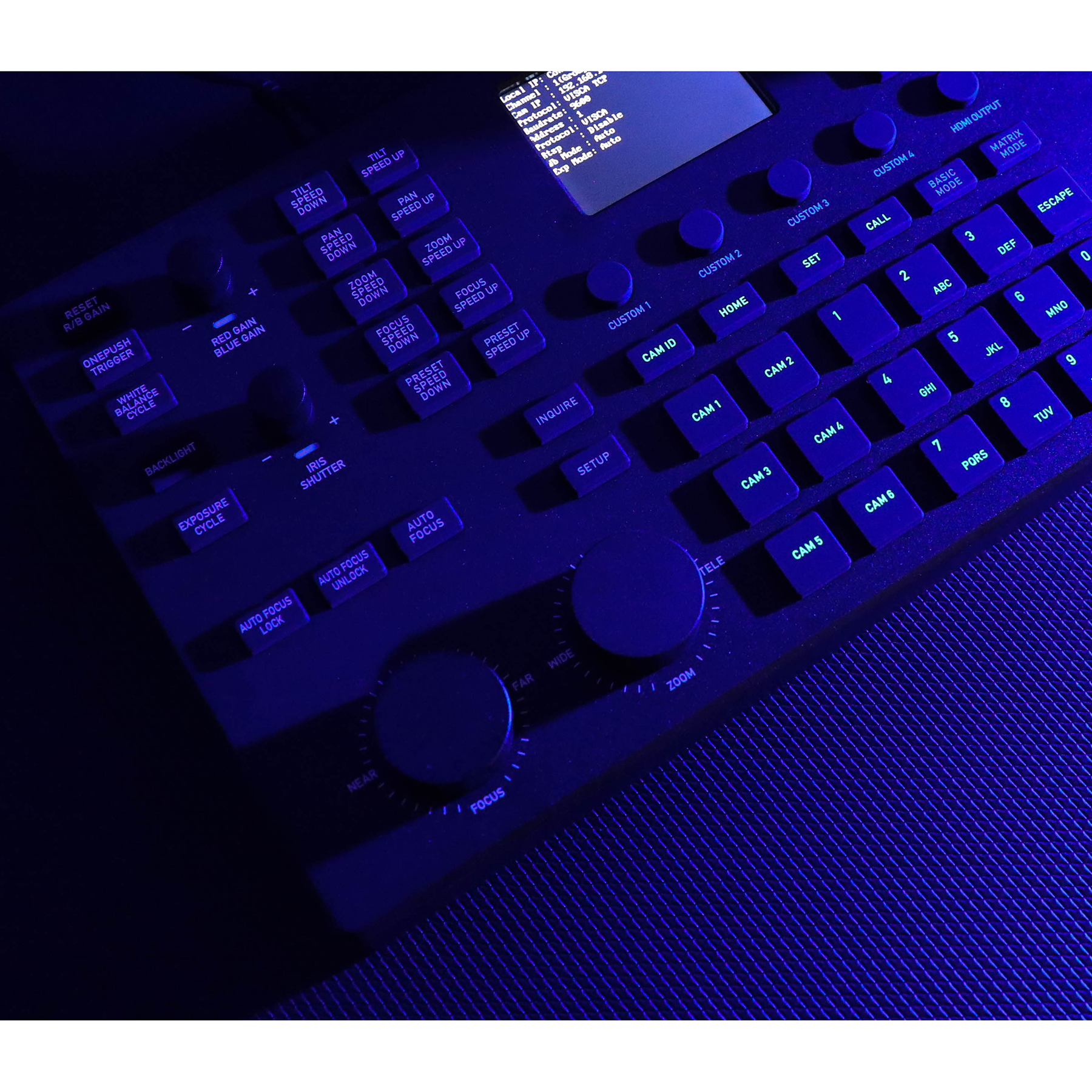

- Ergonomic, rubberized controls and pressure-sensitive dials for precise, on-the-fly-tuning, with no OSD adjustments required

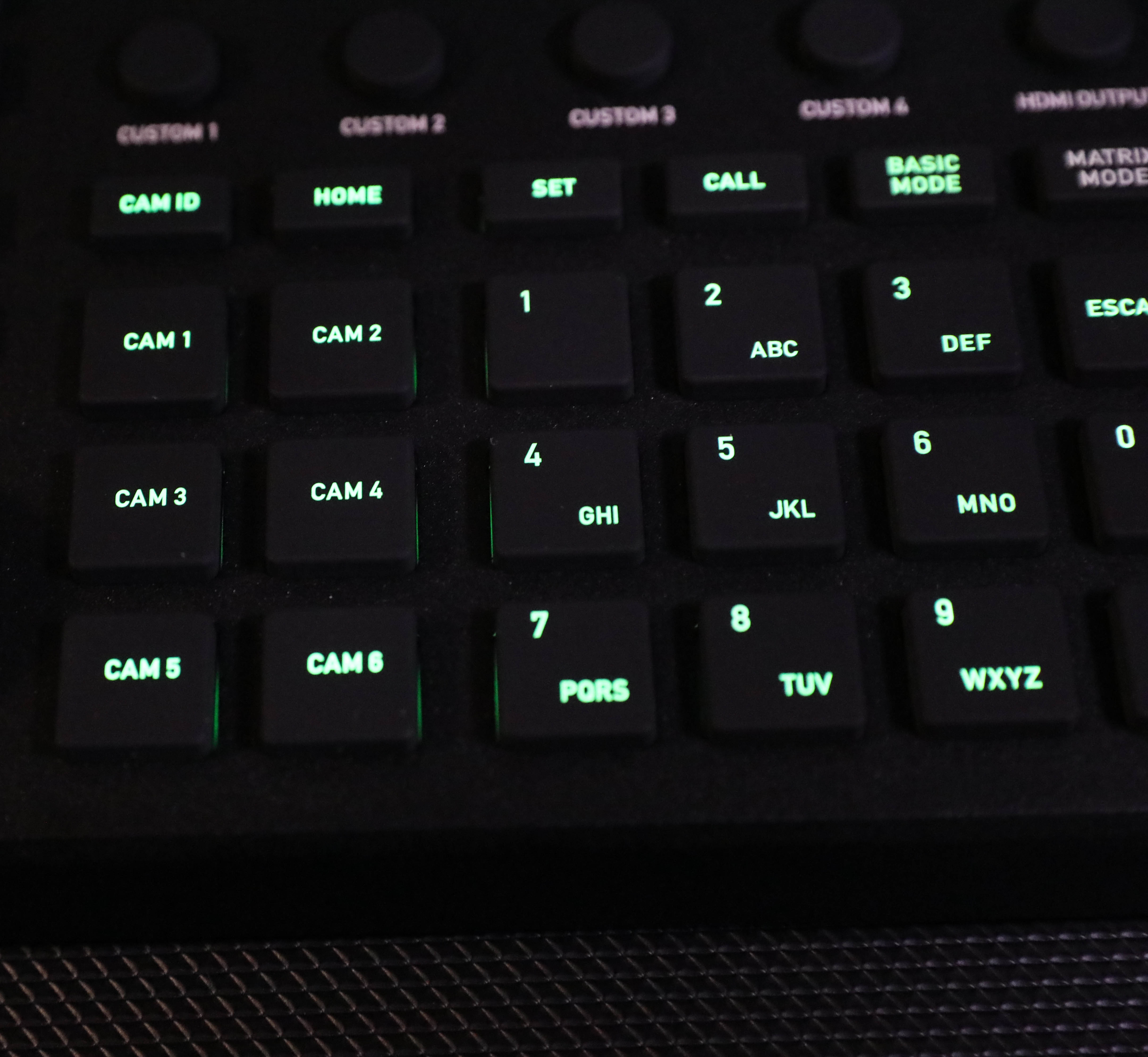

- Status-responsive backlit buttons and knobs indicate available camera modes, while optional tablet/computer control can allow for remote monitoring

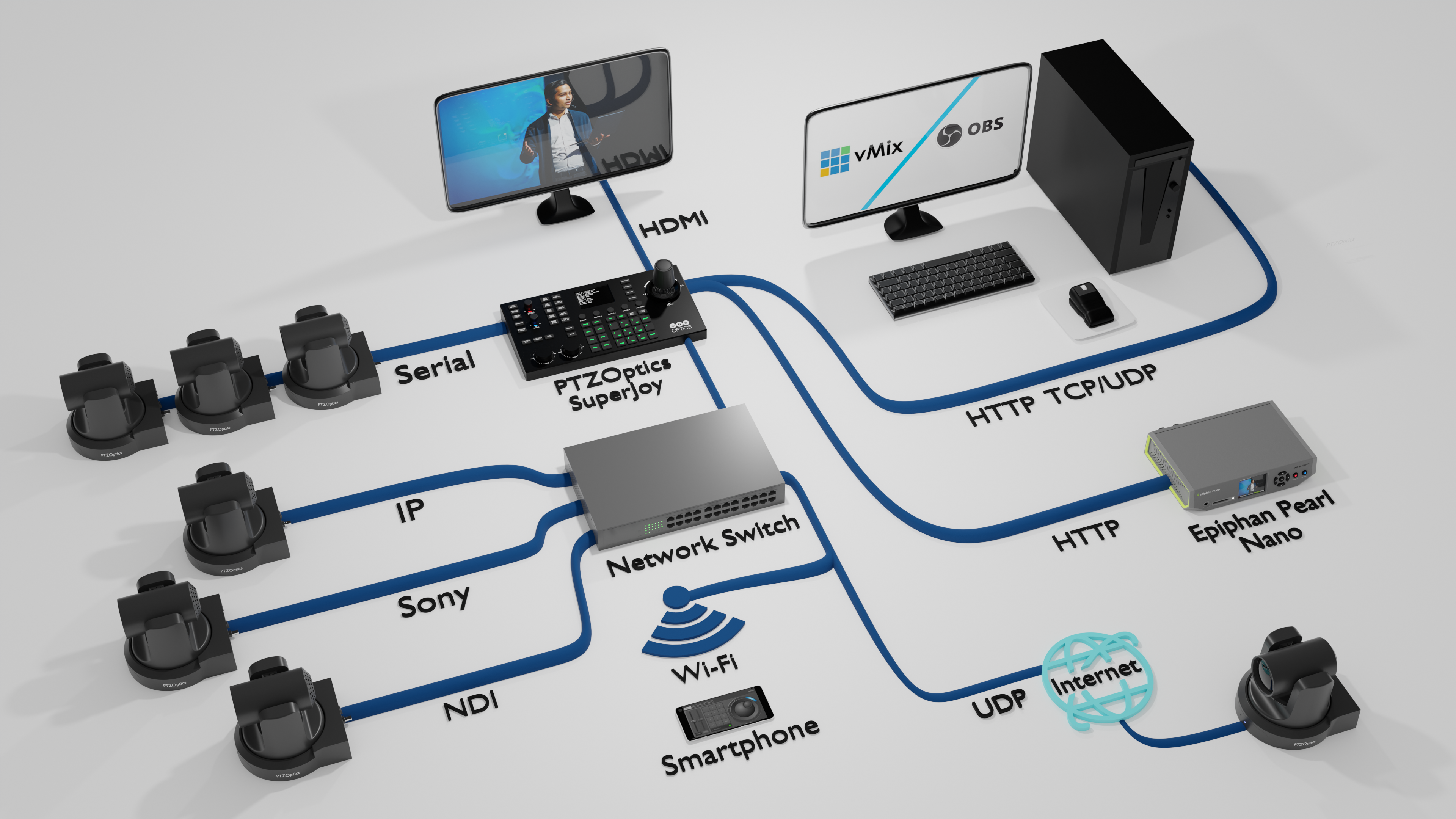

Custom Control Across a Variety of Cameras and Devices
The PTZOptics SuperJoy Joystick Controller is a comprehensive solution supporting mix-and-match serial and network-based control for PTZ cameras of any generation.
- Simultaneous pan, tilt and zoom control across IP, NDI® and serial cameras from multiple brands including PTZOptics, HuddleCamHD, Sony, BirdDog, Lumens, Marshall, NewTek, and Panasonic (newer Panasonic cameras that support Sony VISCA will work).
- If it’s IP-controlled, chances are the SuperJoy can control it – cameras, lights, projector screens and more – using four customizable buttons.

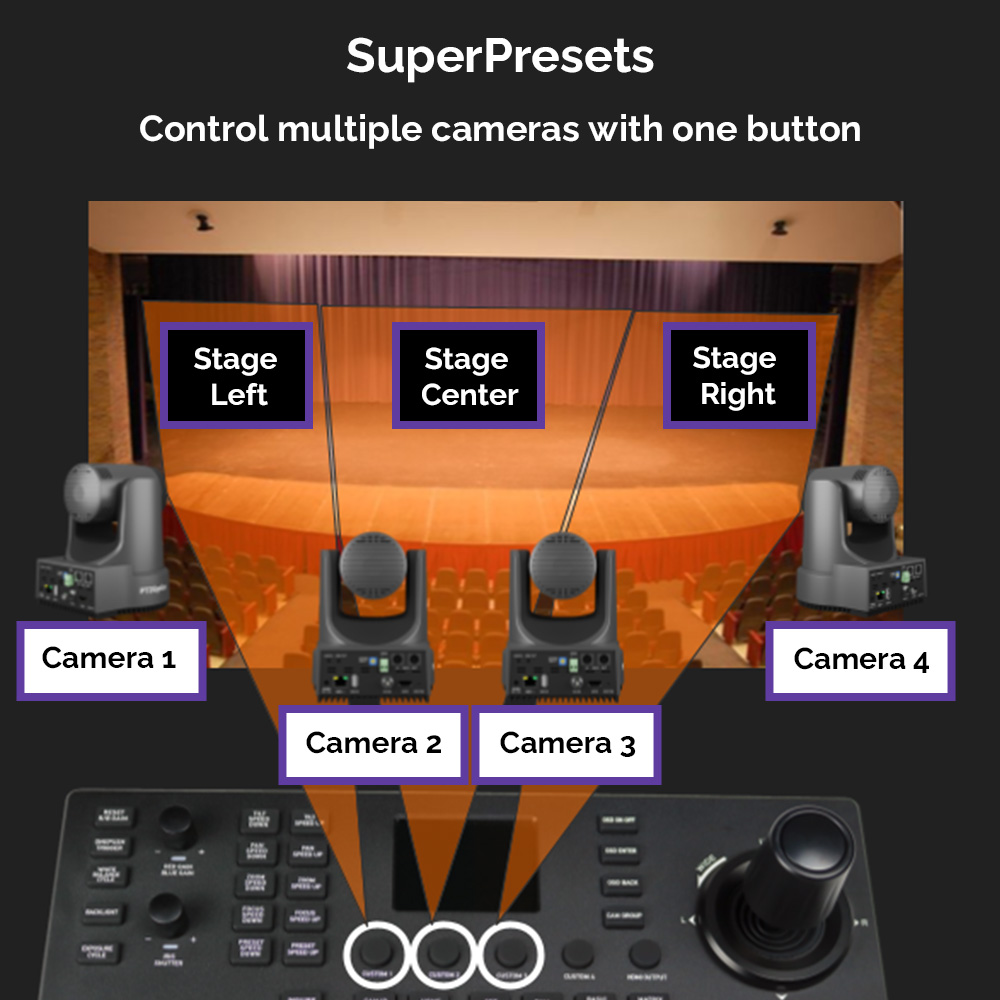

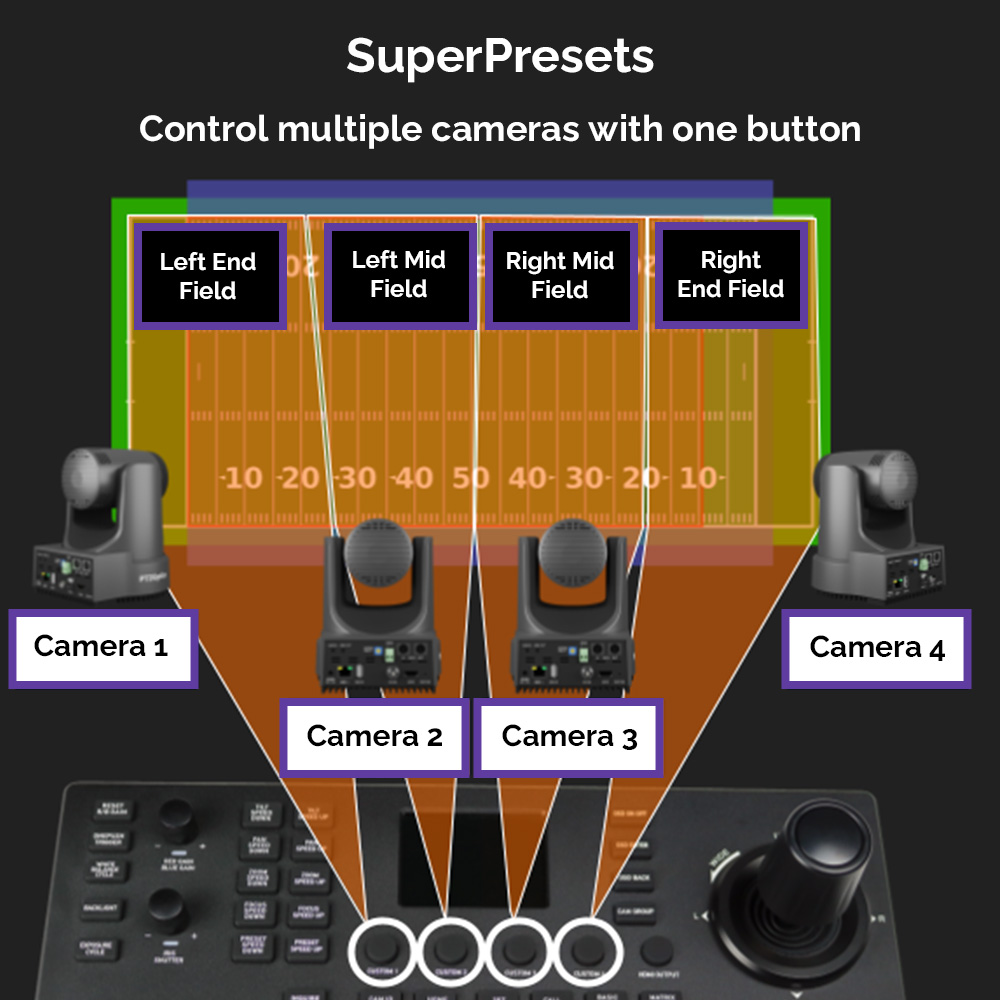

- Powerful Super-Preset buttons are programmable to trigger synchronized multi-preset commands across up to four unique camera groups with up to seven cameras each, as well as a fifth group of up to 225 cameras.
From Power Users to Novices, a Controller for Everyone
With three user-centered control modes designed to accommodate varying skill levels, the SuperJoy offers unparalleled flexibility for production teams of all backgrounds and experiences.
- Use Basic and Basic Plus mode to limit functions to presets and single-camera control
- Matrix mode enables operators to call presets across up to three cameras
- Expert users can program custom buttons for production automation
Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
The SuperJoy comes with a 2-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features and
benefits
- Simultaneous NDI®, IP & Serial Control for a Range of PTZ Cameras
- Create 5 Camera Control Groups (Cam Groups 1-4: 7 channels, Cam Group 5: 225 channels)
- Multi-Brand Compatibility, including Sony, BirdDog, NewTek & More
- Large LCD Screen with Controller Status and built-in decoder with HDMI output
- Basic, Basic Plus & Matrix Modes for Users of All Skill Levels
- Up to 255 PTZ Camera Presets, 9 Quick Presets, and 4 Super-Presets
Future Proof Your Technology
Joystick Comparison
HC-JOY-G4
329
- Cabling: RS-232, RS-485, RS-422
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: DC12V
- Control Protocol: VISCA, PELCO-D, PELCO-P
- Maximum Cameras: 255 cameras
- Design Notes: Works with any PELCO camera
- USB
PT Joystick G4
714
- Cabling: RS-232, RS-485, RS-422, RJ-45
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: 6W|12VDC/PoE (802.3af) (Only use one power source at a time)
- Control Protocols: VISCA over IP (PTZOptics & Sony) or Serial Control (RS-232, RS-485, Pelco-D, & Pelco-P)
- Multiple Control Types: IP OR Serial (must manually toggle between the two)
- Maximum Cameras: 255 cameras via network, 7 cameras via serial VISCA
- Design Notes: Compatible with most PTZ cameras
- USB (only for firmware upgrades)
- HDMI Output
SuperJoy
989

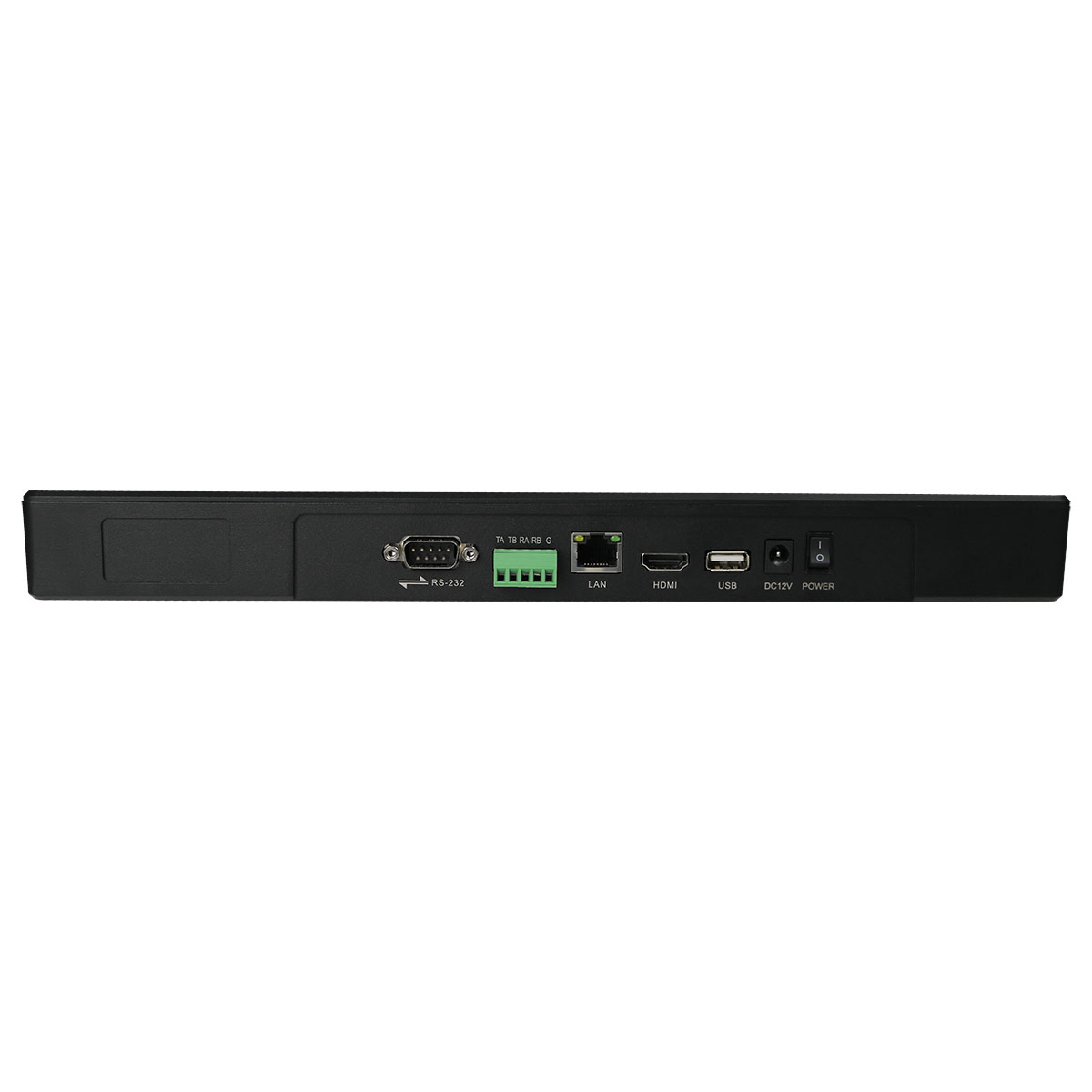

- Cabling: RS-232, RS-485, RS-422, RJ-45
- Max Cable Distance: 3,937’ (1200m) using 24 gauge twisted pair (for RS-485 only)
- Power: 6W|12VDC/PoE (802.3af) (Only use one power source at a time)
- Control Protocols: VISCA over IP (PTZOptics & Sony), Serial Control (RS-232, RS-485, Pelco-D, & Pelco-P), & NDI®
- Multiple Control Types: IP AND Serial
- Maximum Cameras: 255 total cameras (28 cameras (4 groups of 7 channels) plus a group with up to 227 cameras)
- Design Notes: Compatible with most PTZ cameras
- USB (only for firmware upgrades)
- HDMI Output
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
See What Our Customers Are Saying
Superior Performance, Flexibility and Support – All for Less Than You Might Think
Backed by PTZOptics’ 2-year warranty, plus full support from PTZOptics’ technical team, the SuperJoy is an ideal choice for video production crews looking to improve their workflows and streamline their production processes.
And starting at only $899, a better production experience is more accessible than ever.
