SDI CAMERAS
Made For Professional Video Productions
Available in 12x, 20x, and 30x zoom
SELLING OUT FAST!
What's Next?
Check Out the Move SE!

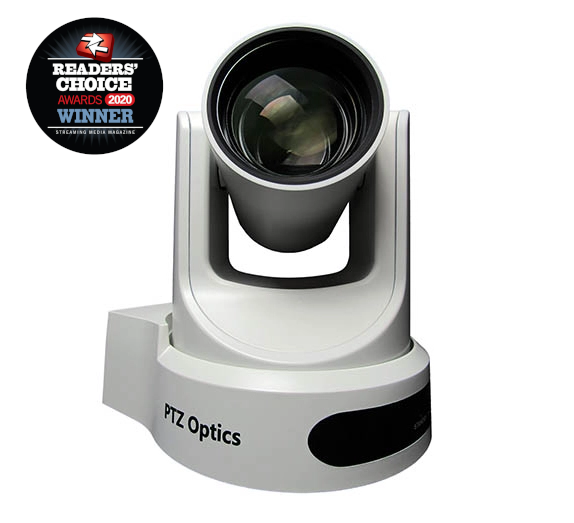

SDI Cameras
Tech Specs
Firmware
Videos
Documentation
Accessories
Software
FAQ
What is an SDI PTZ Camera?
SDI refers to Serial Digital Interface, a standard for the delivery of digital video via a coaxial cable. The SDI standard has been widely adopted by the broadcast industry to transmit uncompressed, unencrypted digital video signals.

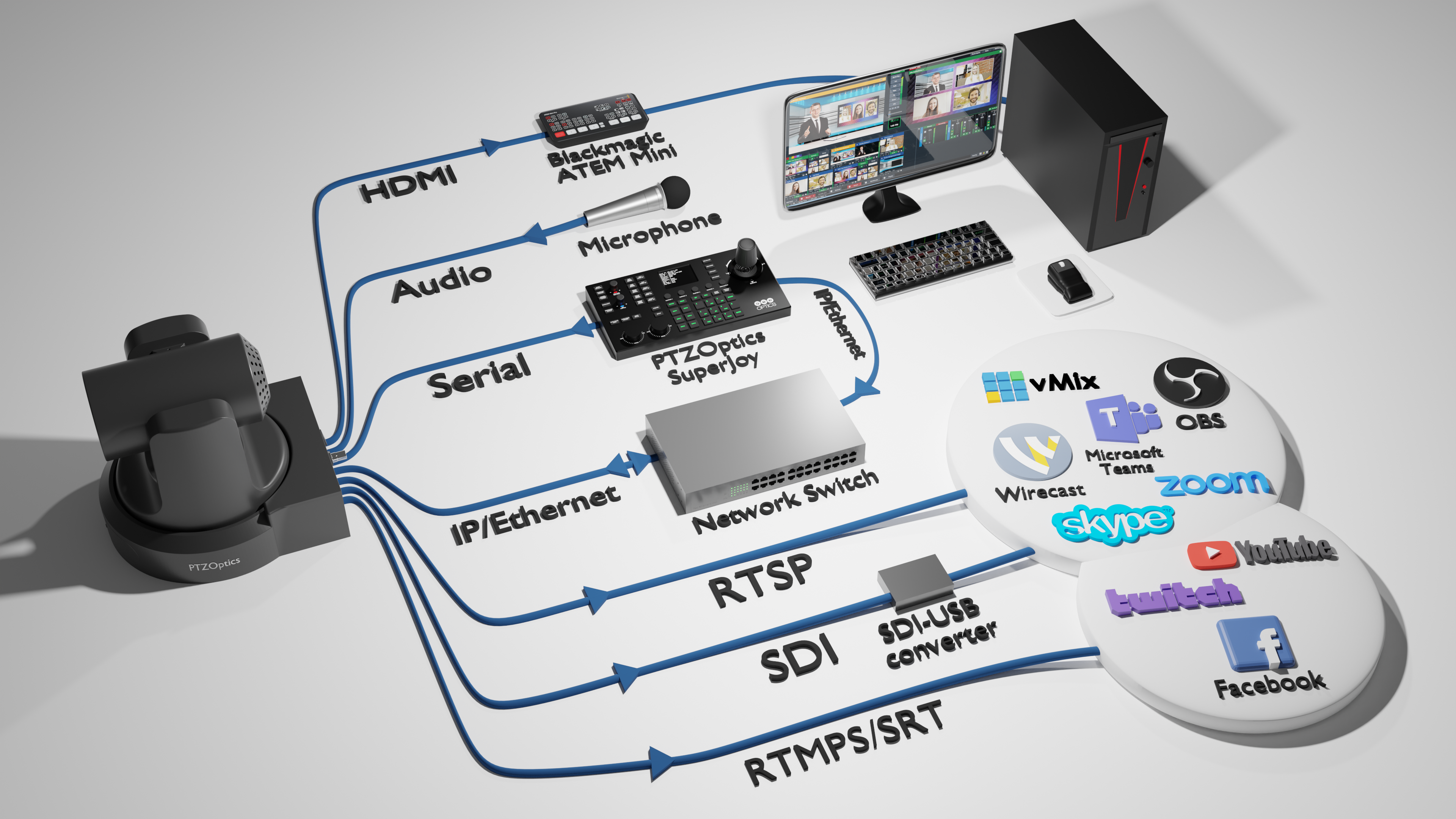

Build your PTZ Camera System

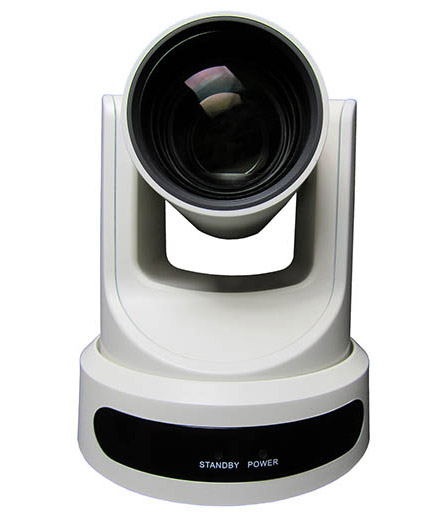

Our SDI line includes some of the most popular camera models we’ve ever made. With game-changing optics and high-quality video outputs, video professionals can create innovative custom systems to uniquely suit their needs.

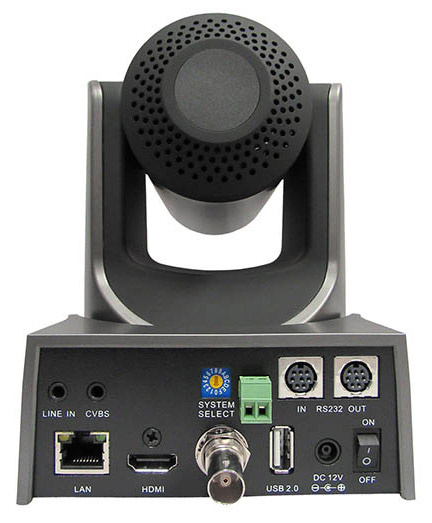

Our multiple video outputs and control methods accommodate the growing demands of modern video production.

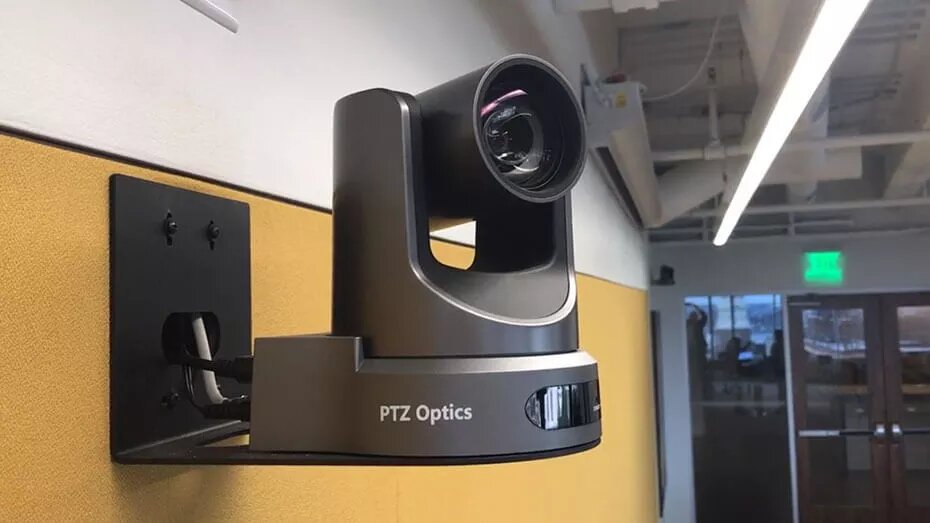

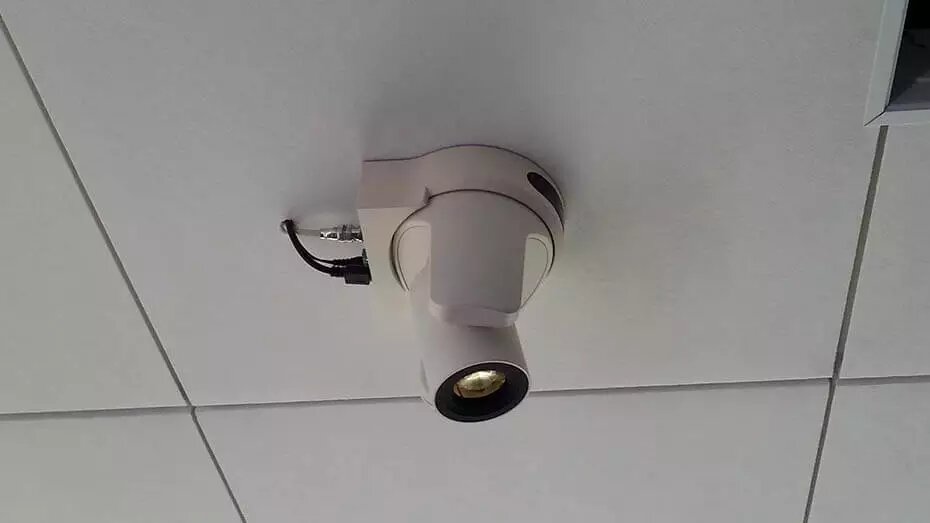

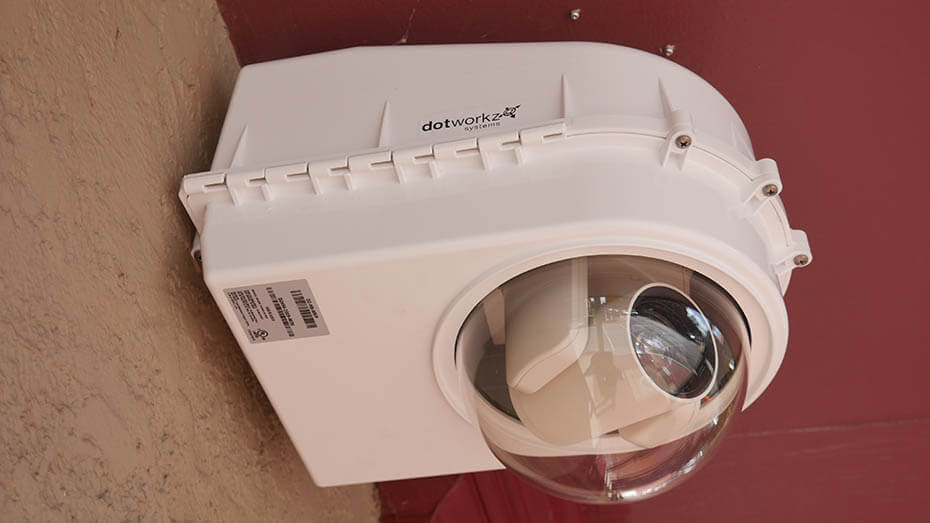

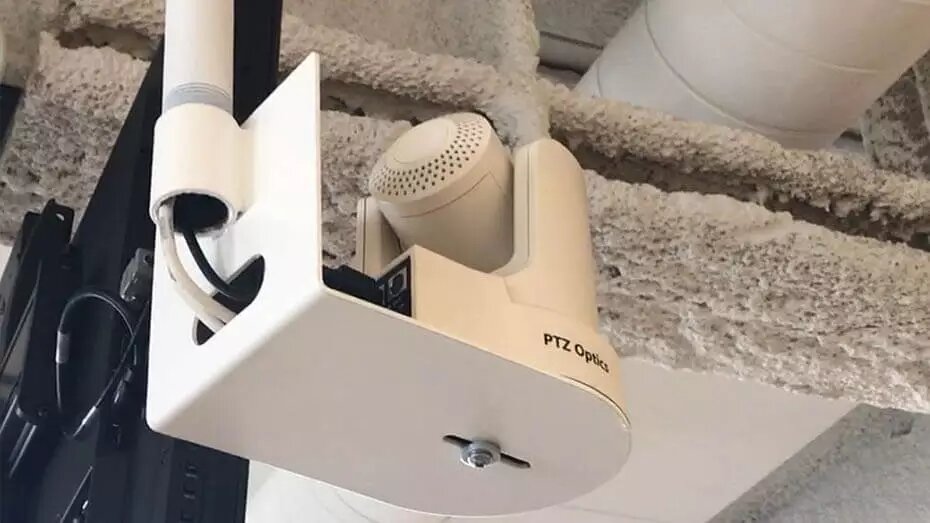

Discreet Mounting Options
Mount your PTZ camera above, below or beside the action to capture the ideal view every time.
Click the links below to learn more about our PTZ mounts:
Versatile Control Options and Live Streaming

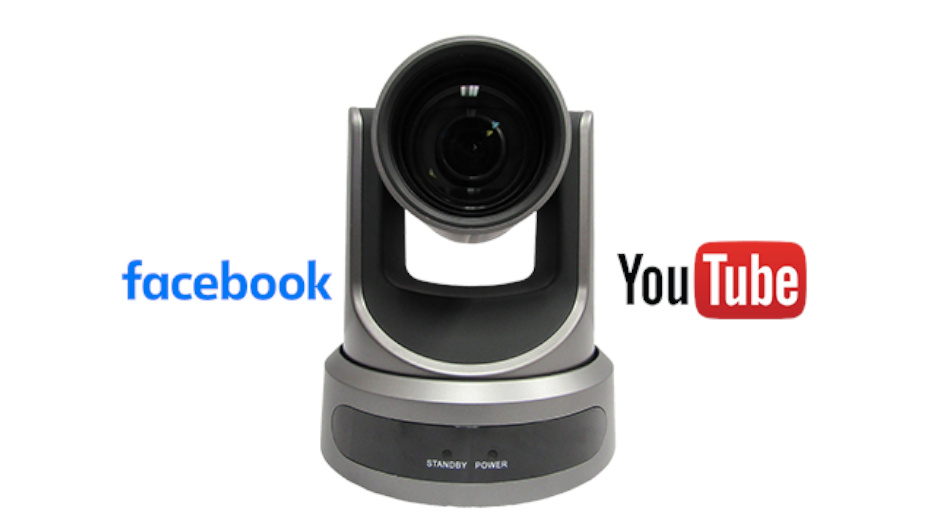

Remote camera control options when and where you want them. Use PTZ controls built-in to your favorite video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster. Or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. Try our free IP control application for Mac or PC, our open-source control software on GitHub, and our OBS plugin here. Mobile device control options are available here. Try out the beta version of our MIDI control app here. SDI cameras can be controlled remotely from anywhere in the world using a variety of tools, including cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
To view a list of free software compatible with SDI PTZ cameras, check out the Software tab at the top of this page. View a full list of our free software here.

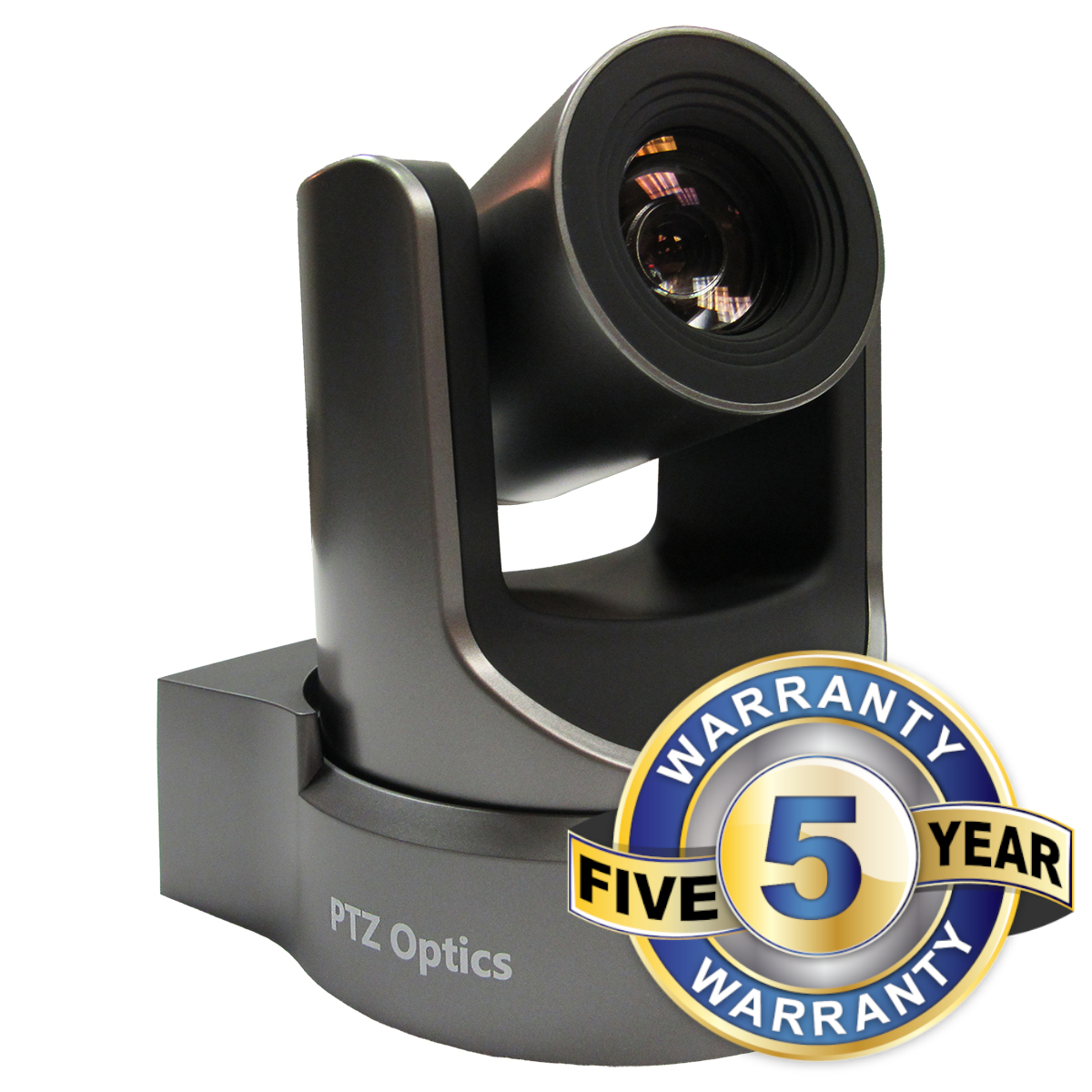

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our PTZ SDI cameras come with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features and
benefits
- Wide Dynamic Range: Helps with challenging lighting conditions such as a mix of dark and light areas
- Noise Reduction: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
- Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
- Warranty: 5 Year Parts & Labor Manufacturer Warranty
- Broadcast Frame Rates: 1080p59.94/29.97, 1080i59.94, 720p59.94
- Advanced White Balance Modes: Simple One-push & New Kelvin Temperature Scale
- SRT Support: Send high-quality, low-latency videos securely over the Internet
Future Proof Your Technology
Camera Comparison
PT12X-SDI
1759
- 12x Optical Zoom
- 72.5° Field of View
- 5-Year Warranty
- SDI
- HDMI
- PoE*
- SRT
- IP Streaming – RTSP/ RTMP
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- 1080P @ 60 FPS Resolution
- Panasonic CMOS Sensor
- Wide Dynamic Range
- USB (Only for firmware updates, not video.)
- NDI®|HX native**
*Standard PoE supported or 12VDC
**View our NDI® line
PT20X-SDI
1869
- 20X Optical Zoom
- 60.7° Field of View
- 5-Year Warranty
- SDI
- HDMI
- PoE*
- SRT
- IP Streaming – RTSP/ RTMP
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- 1080P @ 60 FPS Resolution
- Panasonic CMOS Sensor
- Wide Dynamic Range
- USB (Only for firmware updates, not video.)
- NDI®|HX native**
*Standard PoE supported or 12VDC
**View our NDI® line
PT30X-SDI
1979
- 30X Optical Zoom
- 60.7° Field of View
- 5-Year Warranty
- SDI
- HDMI
- PoE*
- SRT
- IP Streaming – RTSP/ RTMP
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- 1080P @ 60 FPS Resolution
- Panasonic CMOS Sensor
- Wide Dynamic Range
- USB (Only for firmware updates, not video.)
- NDI®|HX native**
*Standard PoE supported or 12VDC
**View our NDI® line
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:
Did you know you can use NDI®|HX with your PTZOptics SDI Camera?

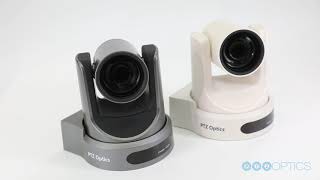

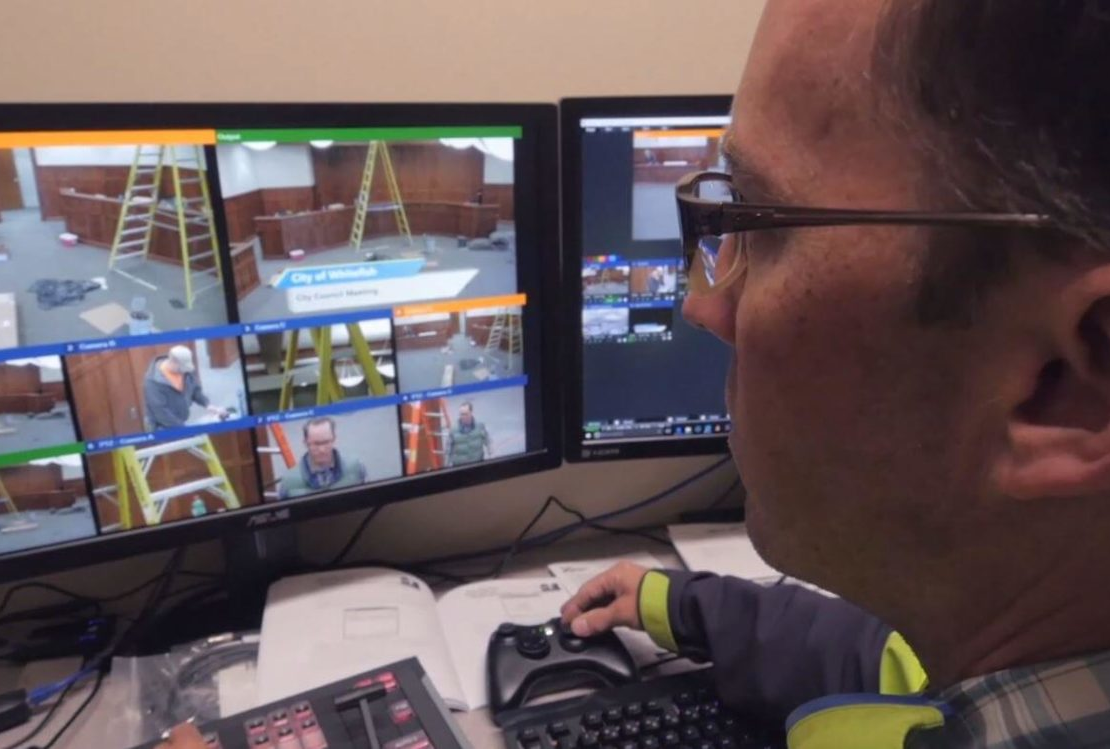

SDI Cameras In Action
Field-of-View Calculator
Enter the distance.
Show output in:
Calculate
Image Width
Fully zoomed in:
Fully zoomed out:
Note: Image ratio is displayed in 16:9
Accessories
These PTZOptics accessories are compatible with our SDI Cameras.
Mounts
PTZOptics mounts are the highest quality option for affixing your camera to a wall, ceiling, or pole. Our universal design works with almost any camera and features a sleek silhouette for discreet mounting scenarios. Available in black or white.
Joysticks
Streamline your production workflow with a joystick camera controller. Perfect for users of all experience levels, a joystick controller can help take your camera operation to the next level.
Looking for More?
PTZOptics offers a large selection of accessories to enhance your setup and suit your unique production needs.
WirelessCable (single and pre-paired)
Wireless Connectivity for IP Video Productions
Spare Infrared PT Remote
Operates all PTZOptics cameras plus the HuddleCamHD Pro and Pro IP
Apps and Software for SDI PTZ Cameras
Below are several applications that can be used with SDI PTZ cameras. If you have any questions about the use of the applications, please feel free to submit a ticket or review our knowledge base articles.
NewBlueFX live production graphics software is now included with all PTZOptics cameras. This software allows you to invigorate your meetings and live video presentations with visually appealing graphics and useful information. You can claim your free software here.
The CMP allows users to manage multiple PTZOptics cameras at once. Turn any G2 PoE PTZOptics camera into an auto-tracking camera with the click of a button. The platform includes the most commonly used features of other PTZ camera applications.
The PTZControl Pro 2 app offers easy control of PTZOptics cameras from any iOS device. Set and call presets, make color adjustments, and access documentation with this all-in-one solution.
Advanced wireless PTZ camera control from your iOS, Android, or Kindle device
Upgrade Tool
Download this tool to apply network firmware updates to the camera, as well as change the camera’s IP address (updated tool). For more firmware tools and files, please visit the Firmware page.
Advanced PTZ camera controls, hotkeys support, and much more available inside of OBS
PTZ camera controllers that are dockable within the OBS interface. The included HTML files feature a variety of customizable PTZ controllers that can be used as with the OBS Custom Browser Docks feature. Custom Browser Docks allow you to place the PTZ controllers directly into the OBS interface.
This Twitch extension allows your audience to control your PTZOptics camera in Twitch.
Control your PTZOptics camera using MIDI commands from programs such as Ableton, Pro Tools, and more.
Use this tool to re-calibrate the focus of your 12X or 20X PTZOptics camera.
