NDI® CAMERAS
NDI®, the industry's leading IP video production protocol developed by NewTek™
Available in 12x, 20x, and 30x zoom
SELLING OUT FAST!
What's Next?
Check Out the Move 4K!

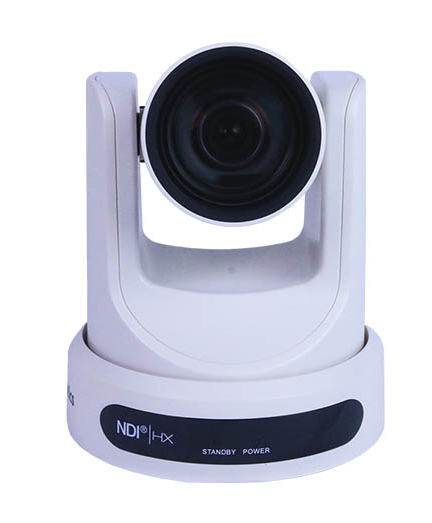

What is an NDI® PTZ Camera?
NDI® is a brand of the Vizrt Group and a royalty-free technology that allows video and audio sources to be shared bi-directionally across a network, eliminating the need for costly direct connections, expensive cable runs, and infrastructure upgrades while turning every source into a destination instantly available anywhere on the network.
PTZOptics NDI® cameras are now compatible with NDIv4. Learn more here.

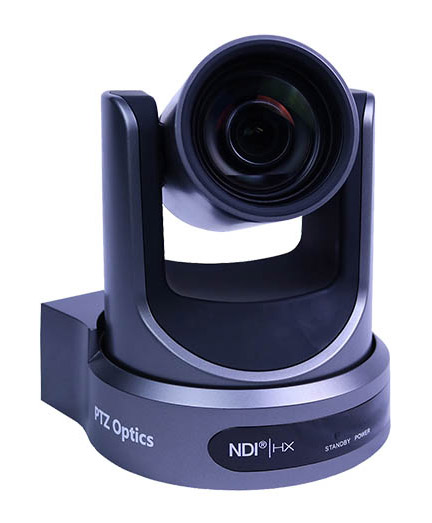

PTZ Broadcast Cameras

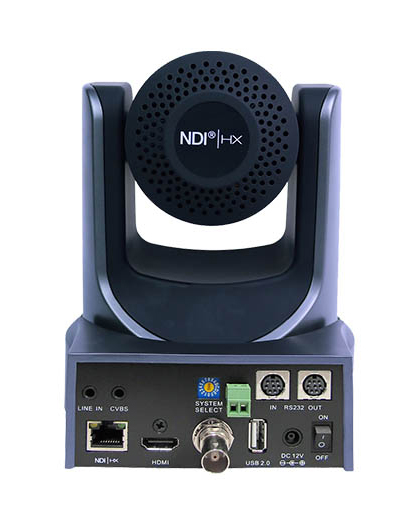

All PTZOptics NDI® Cameras support Power, Video/Audio and Control, over a single Ethernet cable, simplifying the installation and setup of live streaming systems. These PTZ cameras feature broadcast frame rates and NDI® video output favored by video production professionals.
All our PTZ cameras feature SDI, HDMI, NDI®, multiple standard IP streaming formats. They’re also equipped with the latest professional camera control technologies, making remote operation easy.
Once connected to an IP network, broadcasters may choose from professional 3G SDI, Ethernet-connected NDI®, and traditional HDMI workflows simultaneously. Optical zoom lenses of up to 30X enable remote video productions that can capture a head and shoulders shot from up to 70 feet (21 meters) away.

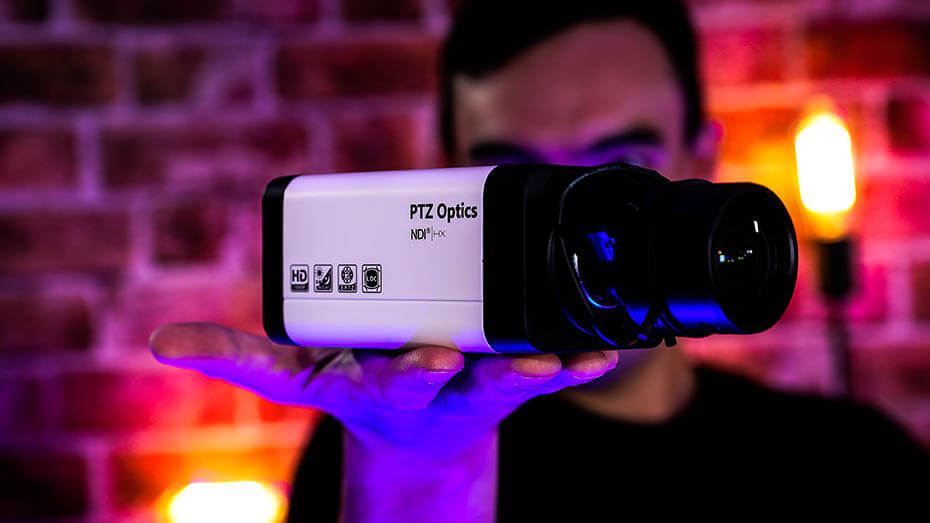

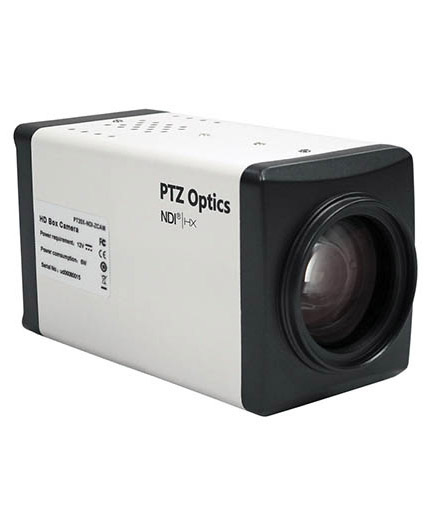

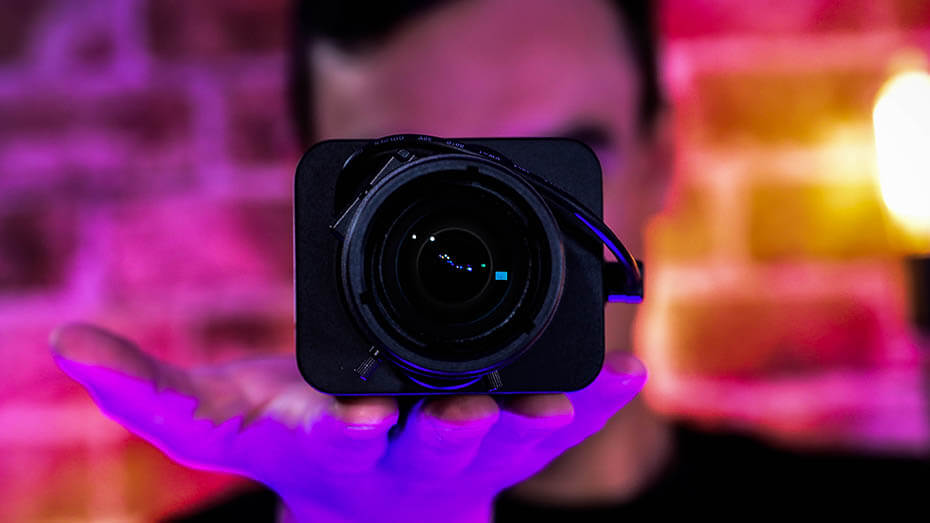

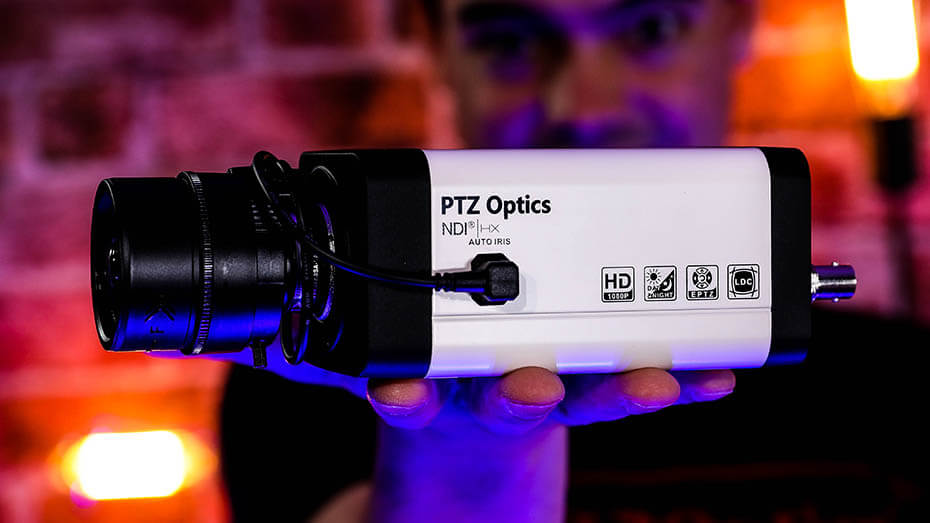

Enhance Your Production with NDI® ZCams
Easily add camera angles to your video production with our flexible SDI, PoE and NDI® enabled ZCams. (Note: Do not power the camera via PoE & the power supply simultaneously.)

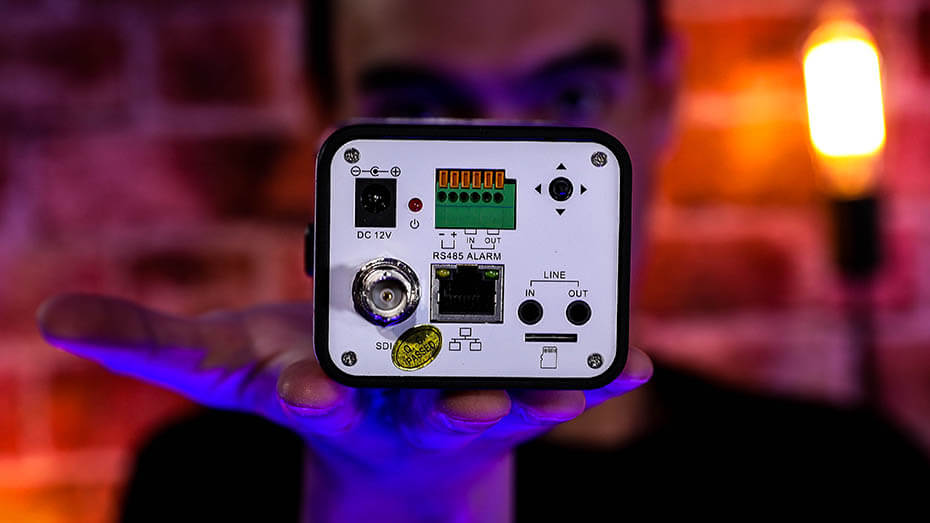

PTZOptics ZCam cameras offer IP connectivity similar to most PTZ camera models without the ability to pan or tilt. Note: The latest EPTZ ZCam cameras do feature digital pan and tilt functionalities with the included 4K video sensor. Learn more about our EPTZ cameras here.
Versatile Control Options and Live Streaming
Remote camera control options when and where you want them. Use PTZ controls built-in to your favorite video production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster. Or check out one of our hardware joystick controllers such as our IP joystick, serial joystick, or the SuperJoy. Try our free IP control application for Mac or PC, our open-source control software on GitHub, and our OBS plugin here. Mobile device control options are available here. Try out the beta version of our MIDI control app here. NDI® cameras can be controlled remotely from anywhere in the world using a variety of tools, including NDI® and cloud-based software such as Zoom. Users can also live stream directly to content delivery networks such as Facebook and Youtube.
Free Software for PTZOptics Users
PTZOptics cameras are compatible with a wide range of free software solutions, including:
- Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
- Control apps for desktop and mobile devices
- Plugins and integrations for popular platforms, including OBS and Twitch
- Camera configuration and management tools
- Support and testing utilities
- And more!
To view a list of free software compatible with NDI® PTZ cameras, check out the Software tab at the top of this page. View a full list of our free software here.

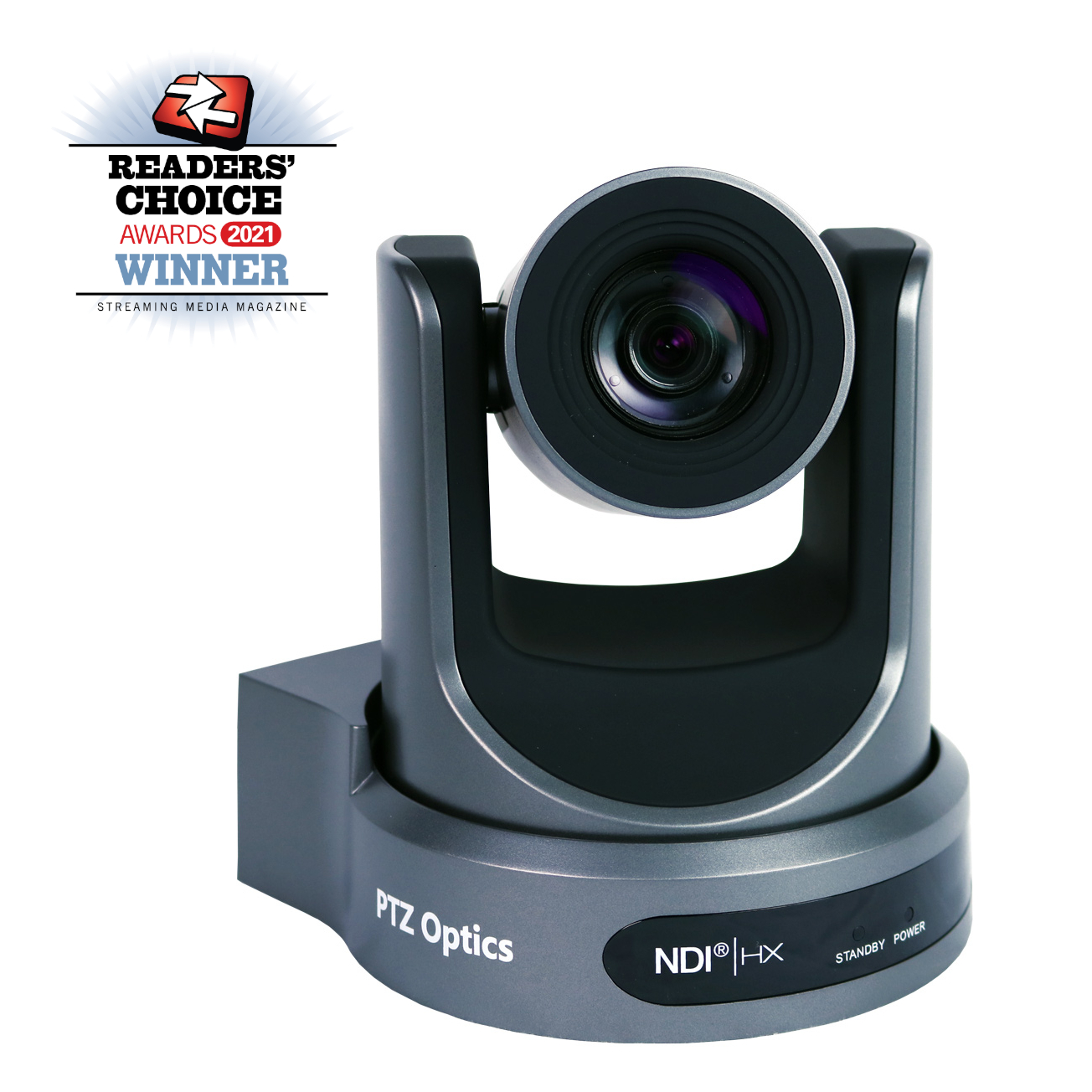

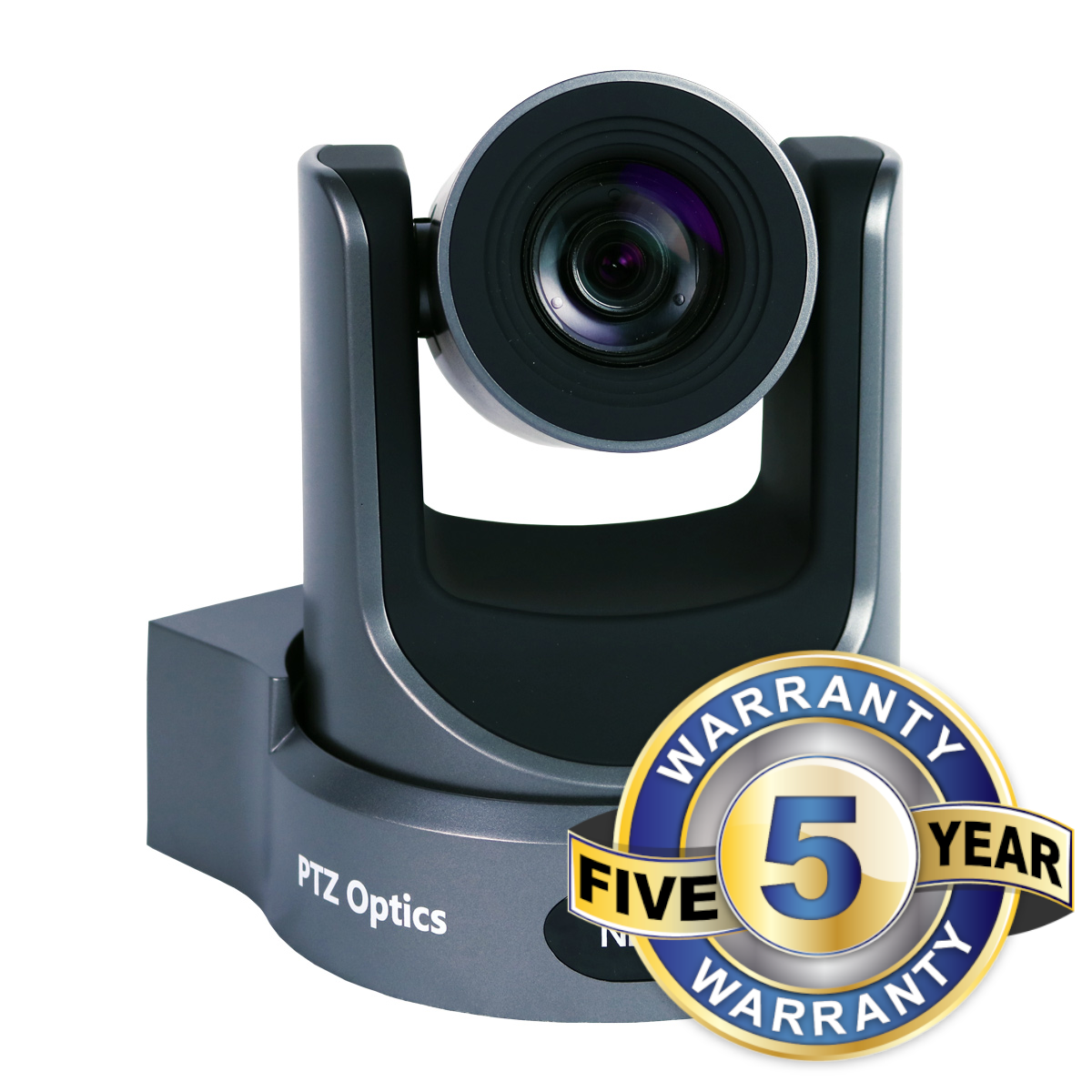

Unrivaled Warranties
With robust warranties included standard on every product, you can trust PTZOptics solutions to deliver high performance from day one, and for many years to follow.
Our NDI® cameras come with a 5-year limited parts and labor warranty. PTZOptics stands by our promise to protect your investment by providing repairs or replacement products for the duration of your warranty. For more information, view our complete warranty documentation here.
Unparalleled Value, Award-Winning Support
When you reach out to PTZOptics for support, you won’t get an automated system — you’ll get a team of in-house, US-based experts ready to help. Connect with us via:
- Phone, email, and chat
- Our detailed knowledge base and forum
- Our online Udemy course
- Our support ticket system
- Our Facebook user group
- Our weekly live shows
Features
- Wide Dynamic Range: Helps with challenging lighting conditions such as a mix of dark and light areas
- Noise Reduction: 2D and 3D noise reduction with our latest “low noise CMOS sensor”
- Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
- Broadcast Frame Rates: 1080p59.94/29.97, 1080i59.94, 720p59.94
- Advanced White Balance Modes: Simple One-push & New Kelvin Temperature Scale
- SRT Support: Send high-quality, low-latency videos securely over the Internet
Camera Comparison

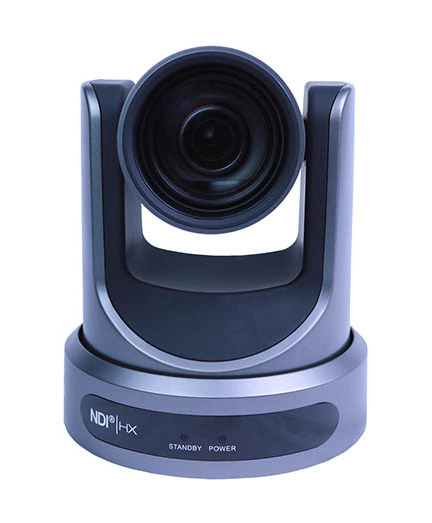

PT12X-NDI
2199
- 12x Optical Zoom
- 72.5° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
PT20X-NDI
2309
- 20X Optical Zoom
- 60.7° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
PT30X-NDI
2419
- 30X Optical Zoom
- 60.7° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (HDMI & IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
PTVL-NDI-ZCAM
989 689
- 4X(Manual) Optical Zoom
- 72° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
PT12X-NDI-ZCAM
1209 999
- 12X Optical Zoom
- 72.5° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
PT20X-NDI-ZCAM
1319 1019
- 20X Optical Zoom
- 60.7° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB

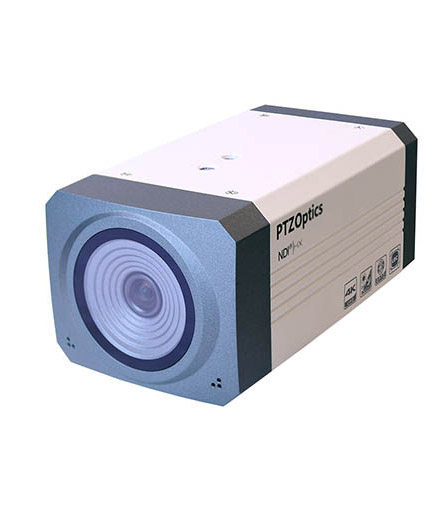

PTEPTZ-NDI-ZCAM-G2
989
- 8X (EPTZ**) Digital Zoom
- 104° Field of View
- 5-Year Warranty
- SDI
- HDMI
- NDI®|HX
- SRT
- 1080P @ 60 FPS Resolution
- IP Streaming (NDI/RTSP/RTMPS)
- Serial Control (RS-232/RS-485)
- 3.5mm Audio Input (IP Stream Only)
- Panasonic CMOS Sensor
- Wide Dynamic Range
- PoE
- USB
**EPTZ stands for electronic pan, tilt and zoom. PTZOptics EPTZ cameras use a 4K image sensor to provide lossless electronic zoom levels with 1080p and 720p video images.
Where to Buy
Ready to get started? Just fill out the form below and we’ll be in touch shortly.
Proudly Partnering With:

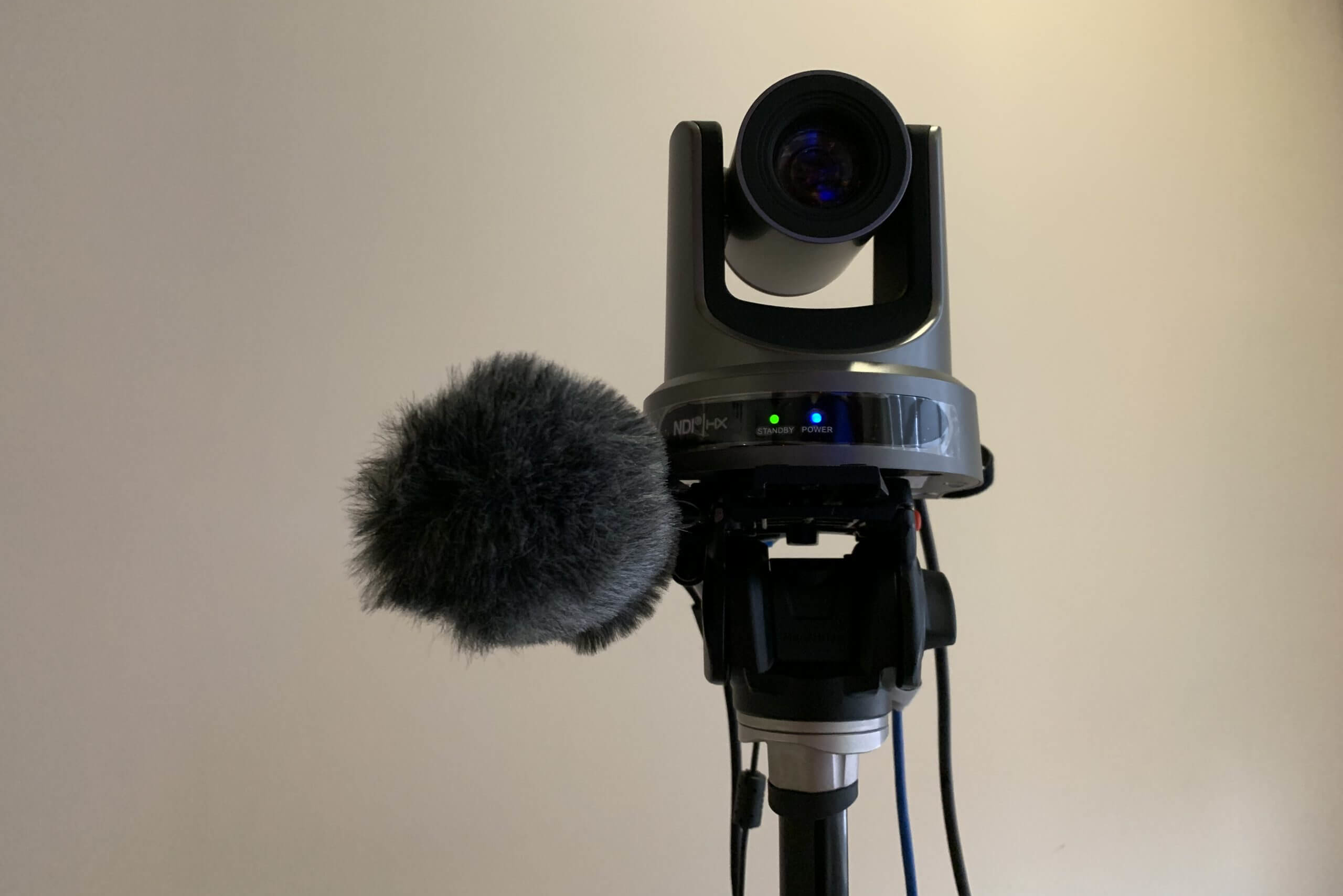

NDI Cameras In Action

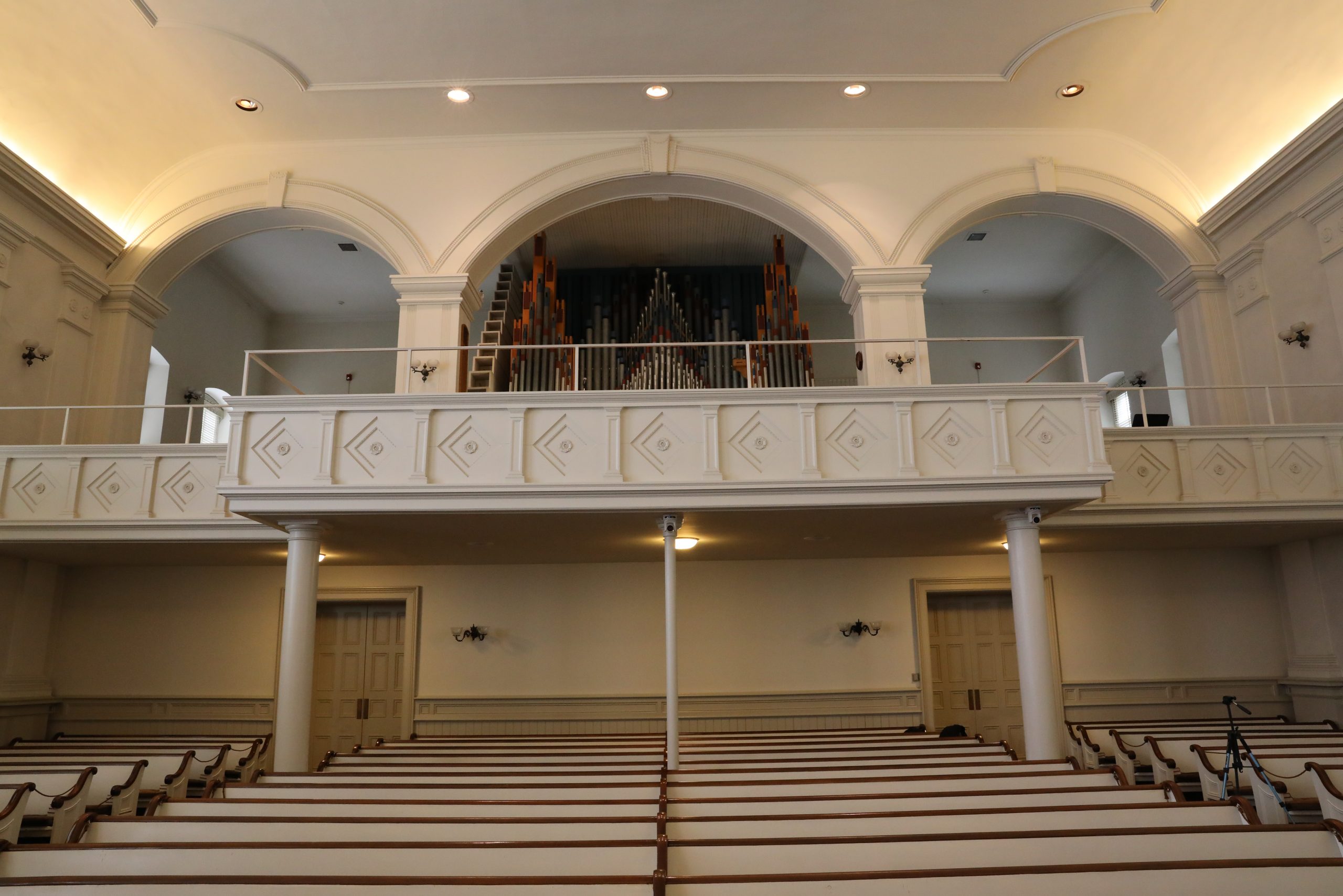

Find out how Central Moravian Church uses our 30x NDI® cameras to live stream services here.
Field-of-View Calculator
Enter the distance.
Show output in:
Calculate
Image Width
Fully zoomed in:
Fully zoomed out:
Note: Image ratio is displayed in 16:9

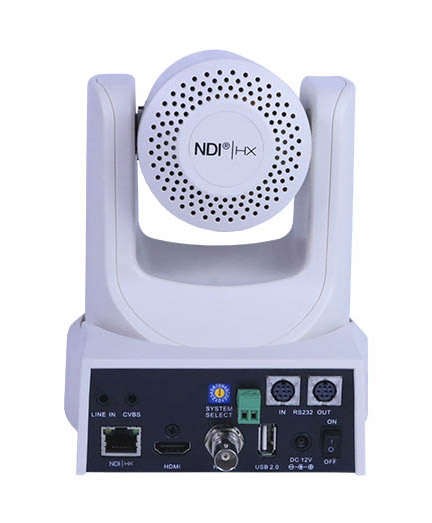

Video Outputs | Video Outputs | (1) 3G-SDI (up to 1080P@60fps capable) (1) HDMI Version 1.3 (up to 1080p@60fps capable) (1) NDI|HX® (1080p@60fps capable)1 Other Video over Ethernet output options2 (1) CVBS*, Not simultaneous with SDI or HDMI outputs3 |
Connectors | (1) 3G-SDI (BNC – 75 Ohm, Female) (1) HDMI v1.3 Type A (Female) (1) 10/100/1000 RJ-45 (1) Non-powered 3.5mm Female Input |
|
Aspect Ratios | 4:3, 16:9 | |
Standard Resolutions | PAL, PAL wide, NTSC, NTSC Wide | |
Output Resolution Range | 480i-30 to 1080p60 | |
Frame Rate | Up to 60 fps | |
IP Streaming | Video Bitrate Range: 32 – 20480 kbps Maximum 1080p Frame Rate 60fps Maximum 720p Frame Rate 120fps Audio Bitrate Options: 96K, 129K, 256K AAC Audio Encoding Audio Sample Rate Options: 44.1K, 48K |
|
Recommended maximum Cable Length for SDI (based on standards) | 300 ft | |
Recommended maximum Cable Length for HDMI (based on standards) | 45 ft | |
Recommended maximum Cable Length for Ethernet (based on standards) | 328 ft | |
Camera and Lens | Video Sensor | Panasonic 1/2.7” CMOS, 2.07 Megapixels |
Scanning Mode | Progressive | |
Frame Rates | Full Frame Rates: 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25 Experimental Broadcast Frame Rates: 1080p59.94, 1080i59.94, 1080p29.97, 720p59.94 CVBS Only (576i-30, 480i-30) |
|
Focal Length | 12x Optical, F3.5mm-42.3mm, F1.8-F2.8 20x Optical, F4.42mm-88.5mm, F1.8-F2.8 30x Optical, F4.42mm-132.6mm, F1.8-F2.8 |
|
Zoom Length | 12X Optical (PT12x) 20X Optical (PT20x) 30X Optical (PT30x) |
|
Horizontal Field of View (Full Wide) | 12X Lens – 72.5° 20X Lens – 60.7° 30X Lens – 60.7° |
|
Horizontal Field of View (Full Tele) | 12X Lens – 7.0° 20X Lens – 4.0° 30X Lens – 2.3° |
|
Min Lux | 0.5 Lux at F1.8, AGC ON | |
Shutter Speed | 1/30s – 1/10000s | |
SNR | ≥55dB | |
Vertical Flip & Mirror | Supported | |
Horizontal Angle of View | 12X Lens – 6.9° (tele) to 72.5° (wide) 20X Lens – 2.28° (tele) to 60.7° (wide) 30X Lens – 2.28° (tele) to 60.7° (wide) |
|
Vertical Angle of View | 12X Lens – 3.9° (tele) to 44.8° (wide) 20X Lens – 1.28° (tele) to 34.1° (wide) 30X Lens – 1.28° (tele) to 34.1° (wide) |
|
Wide Dynamic Range | Supported | |
White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3, One Push (ok), Manual | |
Digital Noise Reduction | 2D & 3D Digital Noise Reduction | |
Audio | Analog audio inputs | Line In, 3.5mm (NDI|HX™, HDMI & IP Stream Only) |
Networking | DHCP | Supported |
Static IP | Supported | |
Multicast | Supported | |
Dual Streaming | Supported | |
720p120fps | Supported | |
HTTP Port Number | Default 80 | |
RTSP Port | Default 554 | |
TCP Port (Control) | Default 5678 | |
UDP Port | Default 1259 | |
Web Management | Supported Guest & Admin Logins |
|
Camera Control | (1) RS-232 (8-pin mini din IN) | RS-232, RS-485, VISCA, PELCO-D/P |
(1) RS-232 (8-pin mini din Out) (passthrough) | Used to cascade RS-232, RS-485, VISCA, PELCO-D/P controls to next camera in line | |
(1) RS-485 | 2-pin phoenix port Max distance: 1500m Protocols: VISCA/Pelco-D/Pelco-P |
|
Baud Rate | 2400/4800/9600 bits | |
IP | PTZOptics VISCA over IP4 | |
Recommended maximum cable length for RS-232 | 90 feet (30 meters) | |
Recommended maximum cable length for RS-485 | 3,600 feet (1,200 meters) | |
Pan & Tilt Movement | Pan Movement | ±170° |
Tilt Rotation | Up: 90°, Down: 30° | |
PTZ Presets | 10 via IR (255 via Serial or IP) 255 presets via Serial or IP |
|
Horizontal Pan Range | ±170° | |
Vertical Pan Range | -30° to +90° | |
Pan Speed Range | 1.7° ~ 100°/s | |
Tilt Speed Range | 1.7° ~ 69.9°/s | |
Preset Accuracy | 0.1° | |
Electrical Index | Power Supply | 12W (Max) |
Input Voltage | 12V DC (10.8 – 13.0V DC) or PoE 802.3af | |
Power over Ethernet | Standard PoE supported 802.3af | |
Physical Specifications | Dimension (in.) | 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt) |
Dimensions (mm) | 142W x 164H x 169D (189H max w/ Tilt) | |
Box Dimensions | 9” x 9” x 10” | 229mm x 254mm x 229mm | |
Camera Weight | 3.20 lbs. (1.45 kg) | |
Boxed Weight | 5.4 lbs. (2.45 kg) | |
Regulatory Compliance | FCC compliance: | FCC 47 CFR Part 15 Subpart B – Class A:2011, ANSI C63.4-2014 |
CE compliance: | EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55035:2017 |
1High (1920 x 1080 @ 60 fps); Medium (1920 x 1080 @ 30 fps); Low (1280 x 720 @ 60 fps); Low Bandwidth (640 x 360 @ 30 fps)
2H.264, H.265, MJPEG Encoding; RTSP; RTMP
3SD only (576i-30, 480i-30)
4TCP (5678); UDP (1259)
*PLEASE NOTE: The 30x is unable to perform simultaneous 1080p 60fps over SDI / HDMI & the NDI|HX™ / IP Stream. When utilizing 1080p 60fps on either of the outputs, the other output must be set to a maximum of 1080p 30fps.
SKU | Version | Download zip file |
---|---|---|
PT12X-SDI/NDI-xx-G2 | 6.3.29 | Download Now |
PT20X-SDI/NDI-xx-G2 | 6.3.16 | Download Now |
PT30X-SDI/NDI-xx-G2 | 6.3.20 | Download Now |
Bundles
SKU | Version | Download zip file |
---|---|---|
PT12X-SDI/NDI-xx-G2 Bundle | 6.3.29 | Download Now |
PT20X-SDI/NDI-xx-G2 Bundle | 6.3.16 | Download Now |
PT30X-SDI/NDI-xx-G2 Bundle | 6.3.20 | Download Now |
NDI® PTZ Cameras
SKU | MSRP | Documents |
---|---|---|
PT12X-NDI-xx | $2,199 | Data Sheet | Manual |
PT20X-NDI-xx | $2,309 | Data Sheet | Manual |
PT30X-NDI-xx | $2,419 | Data Sheet | Manual |
NDI® ZCam Cameras
SKU | MSRP | Documents |
---|---|---|
PTVL-NDI-ZCAM-xx | Data Sheet | Manual | |
PT12X-NDI-ZCAM-xx | Data Sheet | Manual | |
PT20X-NDI-ZCAM-xx | Data Sheet | Manual | |
PTEPTZ-NDI-ZCAM | $989 | Data Sheet | Manual |
Note: “xx” stands for the color. Use “WH” for white and “GY” for gray.
What is NDI®?
NDI® is a paradigm shift that will increase what is possible in all things live video. Using standard networking infrastructure NDI® will enable you to do more with less. New possibilities for low budget streaming and high-end video productions system alike are now making the move toward a future of broadcast video over IP.
Please note: The 30X is unable to perform simultaneous 1080p 60fps over SDI / HDMI & the IP Stream. When utilizing 1080p 60fps on either of the outputs, the other output must be set to a maximum of 1080p 30fps.
Accessories
These PTZOptics accessories are compatible with our NDI Cameras (not including NDI ZCam or NDI EPTZ cameras).
Mounts
PTZOptics mounts are the highest quality option for affixing your camera to a wall, ceiling, or pole. Our universal design works with almost any camera and features a sleek silhouette for discreet mounting scenarios. Available in black or white.
Joysticks
Streamline your production workflow with a joystick camera controller. Perfect for users of all experience levels, a joystick controller can help take your camera operation to the next level.
Looking for More?
PTZOptics offers a large selection of accessories to enhance your setup and suit your unique production needs.
WirelessCable (single and pre-paired)
Wireless Connectivity for IP Video Productions
Spare Infrared PT Remote
Operates all PTZOptics cameras plus the HuddleCamHD Pro and Pro IP
Apps and Software for NDI PTZ Cameras
Below are several applications that can be used with NDI PTZ cameras. If you have any questions about the use of the applications, please feel free to submit a ticket or review our knowledge base articles.
NewBlueFX live production graphics software is now included with all PTZOptics cameras. This software allows you to invigorate your meetings and live video presentations with visually appealing graphics and useful information. You can claim your free software here.
The CMP allows users to manage multiple PTZOptics cameras at once. Turn any G2 PoE PTZOptics camera into an auto-tracking camera with the click of a button. The platform includes the most commonly used features of other PTZ camera applications.
The PTZControl Pro 2 app offers easy control of PTZOptics cameras from any iOS device. Set and call presets, make color adjustments, and access documentation with this all-in-one solution.
Advanced wireless PTZ camera control from your iOS, Android, or Kindle device
Upgrade Tool
Download this tool to apply network firmware updates to the camera, as well as change the camera’s IP address (updated tool). For more firmware tools and files, please visit the Firmware page.
Advanced PTZ camera controls, hotkeys support, and much more available inside of OBS
PTZ camera controllers that are dockable within the OBS interface. The included HTML files feature a variety of customizable PTZ controllers that can be used as with the OBS Custom Browser Docks feature. Custom Browser Docks allow you to place the PTZ controllers directly into the OBS interface.
This Twitch extension allows your audience to control your PTZOptics camera in Twitch.
Control your PTZOptics camera using MIDI commands from programs such as Ableton, Pro Tools, and more.
Use this tool to re-calibrate the focus of your 12X or 20X PTZOptics camera.
Yes, all PTZOptics NDI® cameras support PoE (Power Over Ethernet). This means that you can use a single ethernet cable to power the camera, control the camera, and send video/audio from the camera via NDI®. PTZOptics cameras are compatible with PoE and PoE+ switches.
PTZOptics NDI® cameras are currently only available with NDI®|HX (High Efficiency). NDI® high bandwidth cameras support lower compression rates with high bandwidth requirements typically over 100Mbps. NDI®|HX cameras support higher compression rates with lower bandwidth requirements typically under 24Mbps.
Not exactly. PTZOptics does have an IP joystick controller. This IP joystick controller is designed to control any IP connected PTZOptics camera. This IP joystick controller does not support NDI® as a control protocol but it can control any PTZOptics NDI® camera.
We highly recommend using NDI® cameras over a LAN (Local Area Network). Wireless systems are getting better every year and it is possible to use standard wireless networks with NDI® video sources. We only recommend using NDI® video sources with standard wireless access points for non-essential viewing purposes. We do recommend using NDI® cameras for wireless purposes with the PTZOptics Wireless Cable that has been purpose built to serve this need. You can learn more about that here.
Yes. While the PTZOptics and NewTek NDI® cameras both support the new HX (High Efficiency) protocol, these cameras do differ in some ways. One example, is the PoE requirements for PTZOptics cameras versus the PoE+ requirements for the NewTek PTZ camera. Another difference is the warranty. PTZOptics offers a 5-year warranty. NewTek offers a 1-year warranty for their PTZ camera.
Yes. You can use this camera with the NDI® Virtual Input application on your computer. The NDI® Virtual Input tool creates a virtual USB camera source on your computer that you can select as your video source in your conferencing software. Therefore you can bring NDI® video sources over the network directly into your favorite video conferencing software.
